Ricoh SR3270 - Entrance Transport Motor (DCM1); Proof Transport Motor (DCM2)

2.Replacement and Adjustment
70

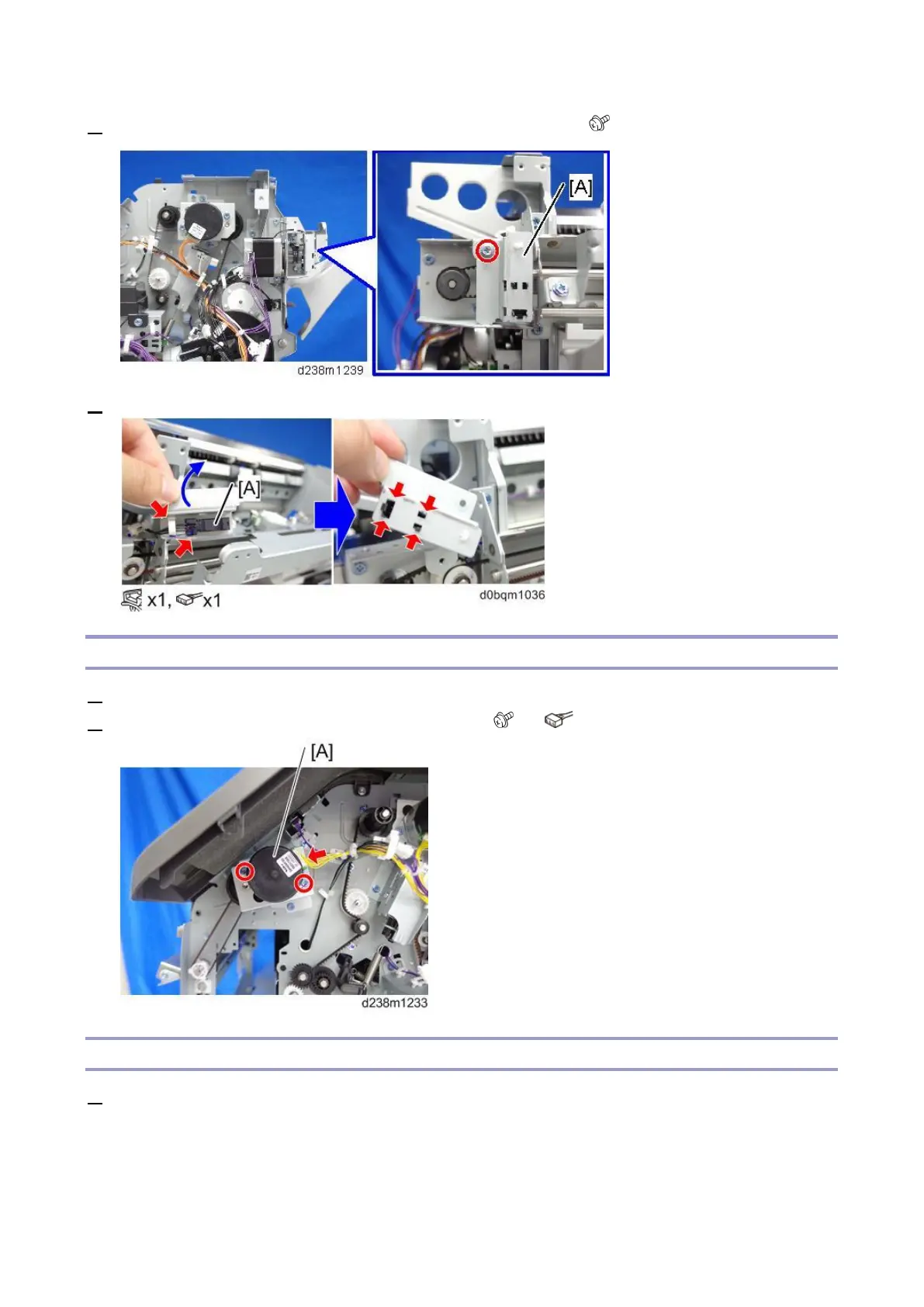

2. Remove the Paper Exit Guide HP Sensor (S35) with bracket [A] ( ×1).
3. Remove the Paper Exit Guide HP Sensor (S35) [A].
Entrance Transport Motor (DCM1)
1. Remove the rear cover (Rear Cover).
2. Remove the Entrance Transport Motor (DCM1) [A] ( ×2, ×1).
Proof Transport Motor (DCM2)
1. Remove the rear cover (Rear Cover).
