Ricoh SR3270 - Stapler Tray

2.Replacement and Adjustment
78

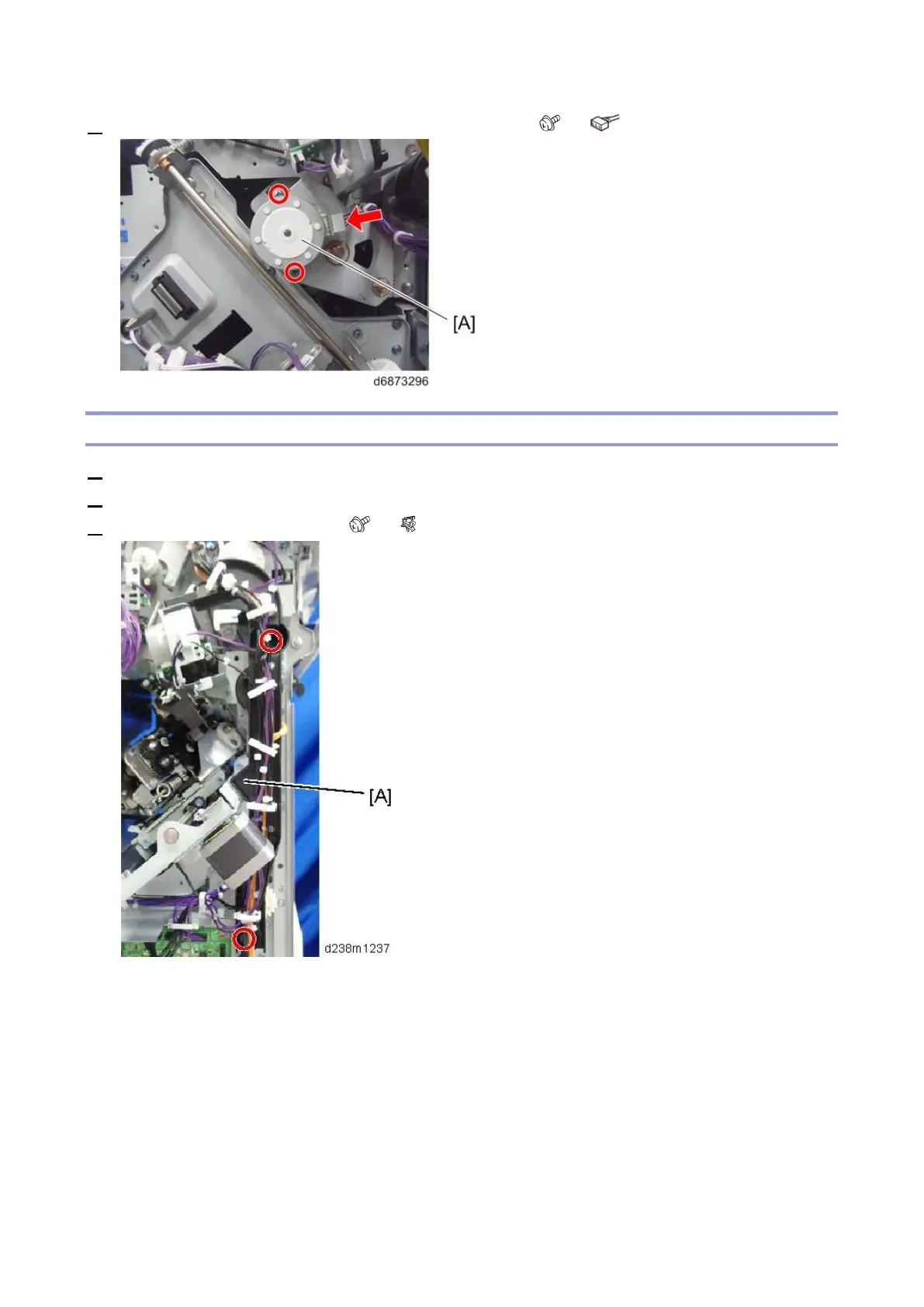

4. Remove the Booklet Transport (Upper) Motor (STM8) [A] ( ×2, ×1).
Stapler Tray
1. Remove the left center cover (Left Center Cover).
2. Remove the saddle stitch unit (Saddle Stitch Unit).
3. Remove the harness guide [A] ( ×2, ×6) (Finisher SR3260 only).
