Ricoh SR3270 - Paper Exit Guide Drive Motor (STM16)

2.Replacement and Adjustment
74

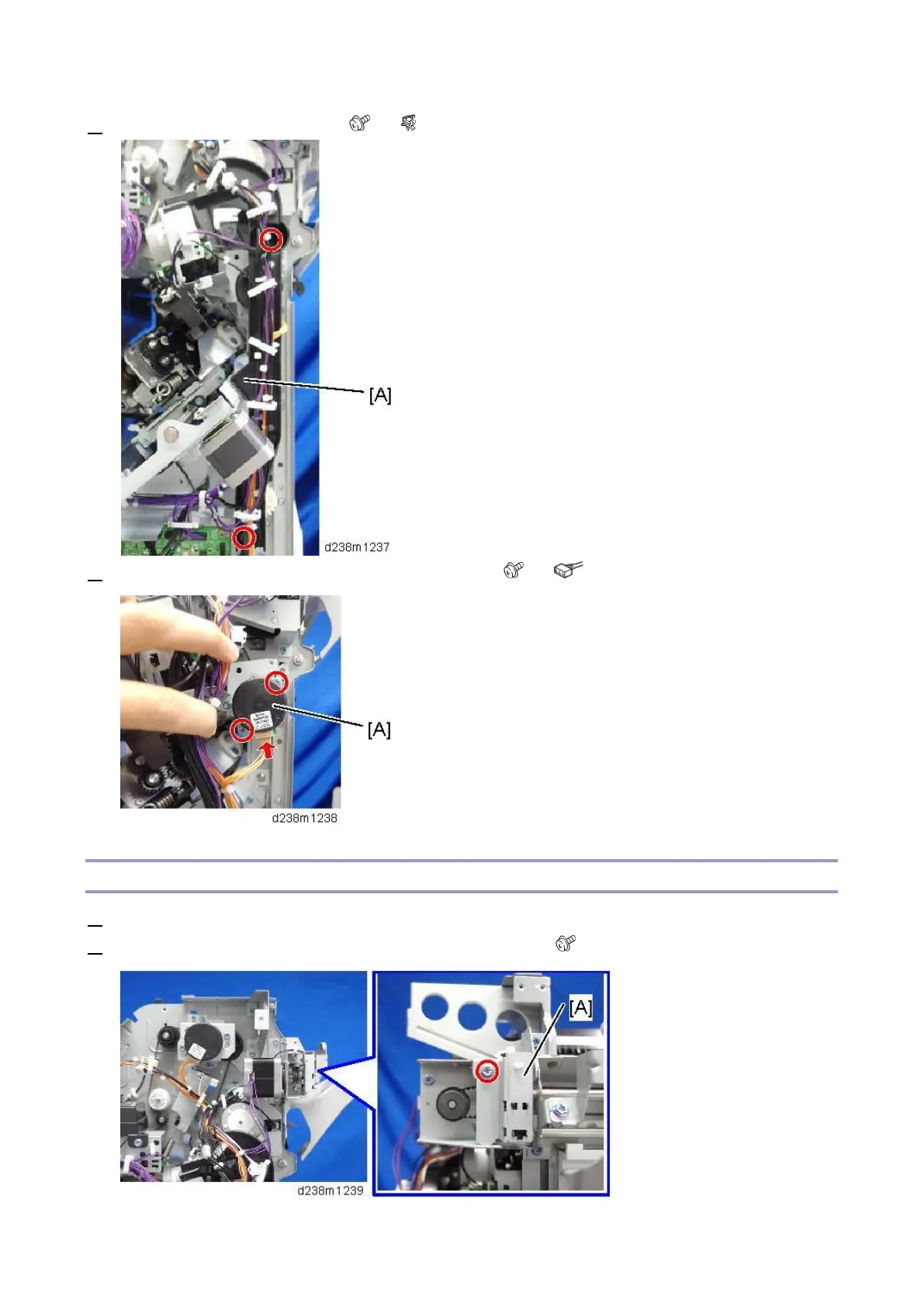

2. Remove the harness guide [A] ( ×2, ×6).
3. Remove the Paper Exit Transport Motor (DCM3) [A] ( ×2, ×1).
Paper Exit Guide Drive Motor (STM16)
1. Remove the upper left cover (Upper Left Cover).
2. Remove the Paper Exit Guide HP Sensor (S35) bracket [A] ( ×1).
