Ricoh SR3270 - Proof Tray Paper Exit Sensor (S22)

2.Replacement and Adjustment
65

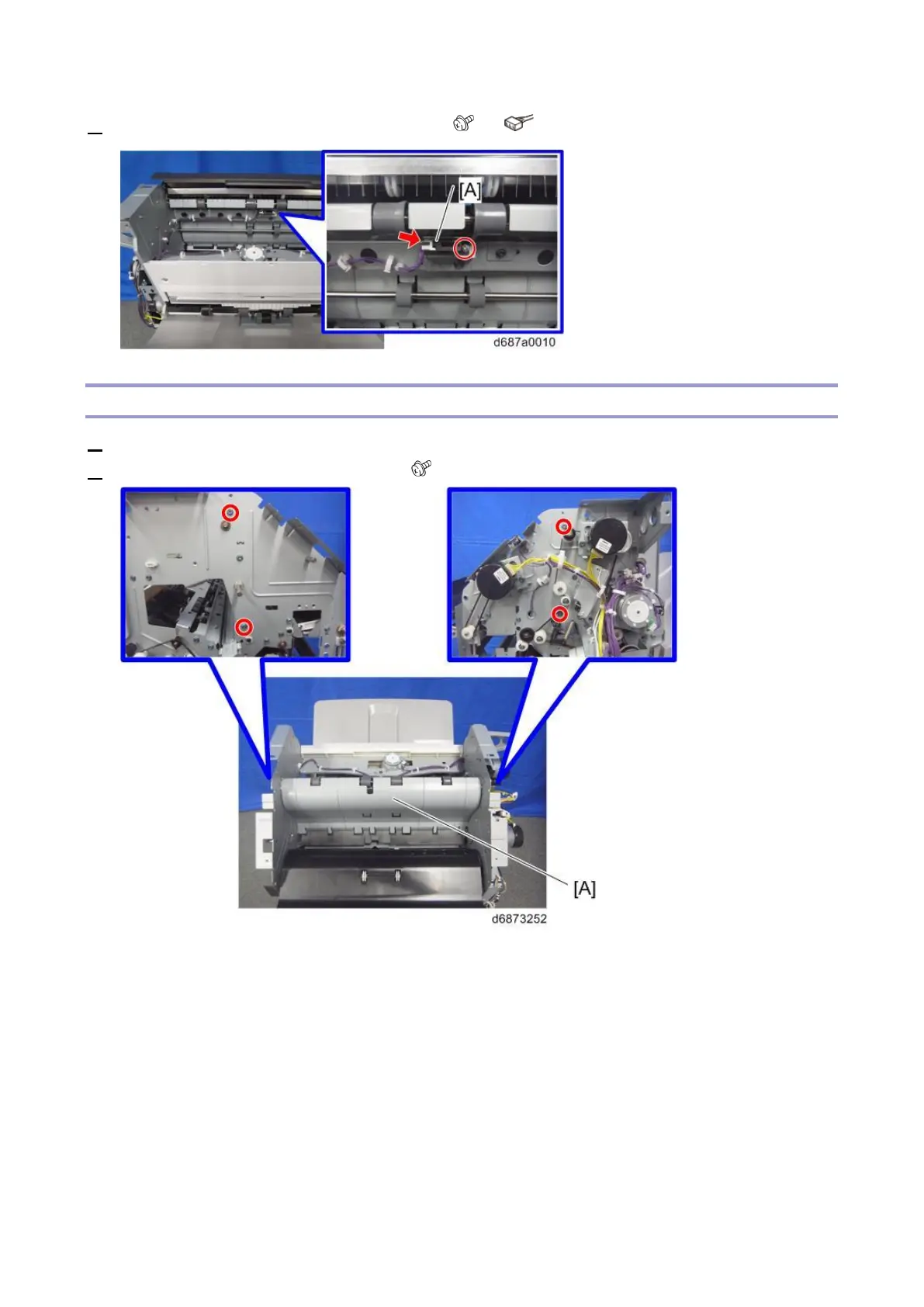

2. Remove the Proof Tray Full Sensor (S21) [A] ( ×1, ×1).
Proof Tray Paper Exit Sensor (S22)
1. Remove the proof tray (Proof Tray).
2. Remove the proof transport bracket [A] ( ×4).
