Ricoh SR3270 - Shift Tray Upper Limit Switch (SW2)

2.Replacement and Adjustment
68

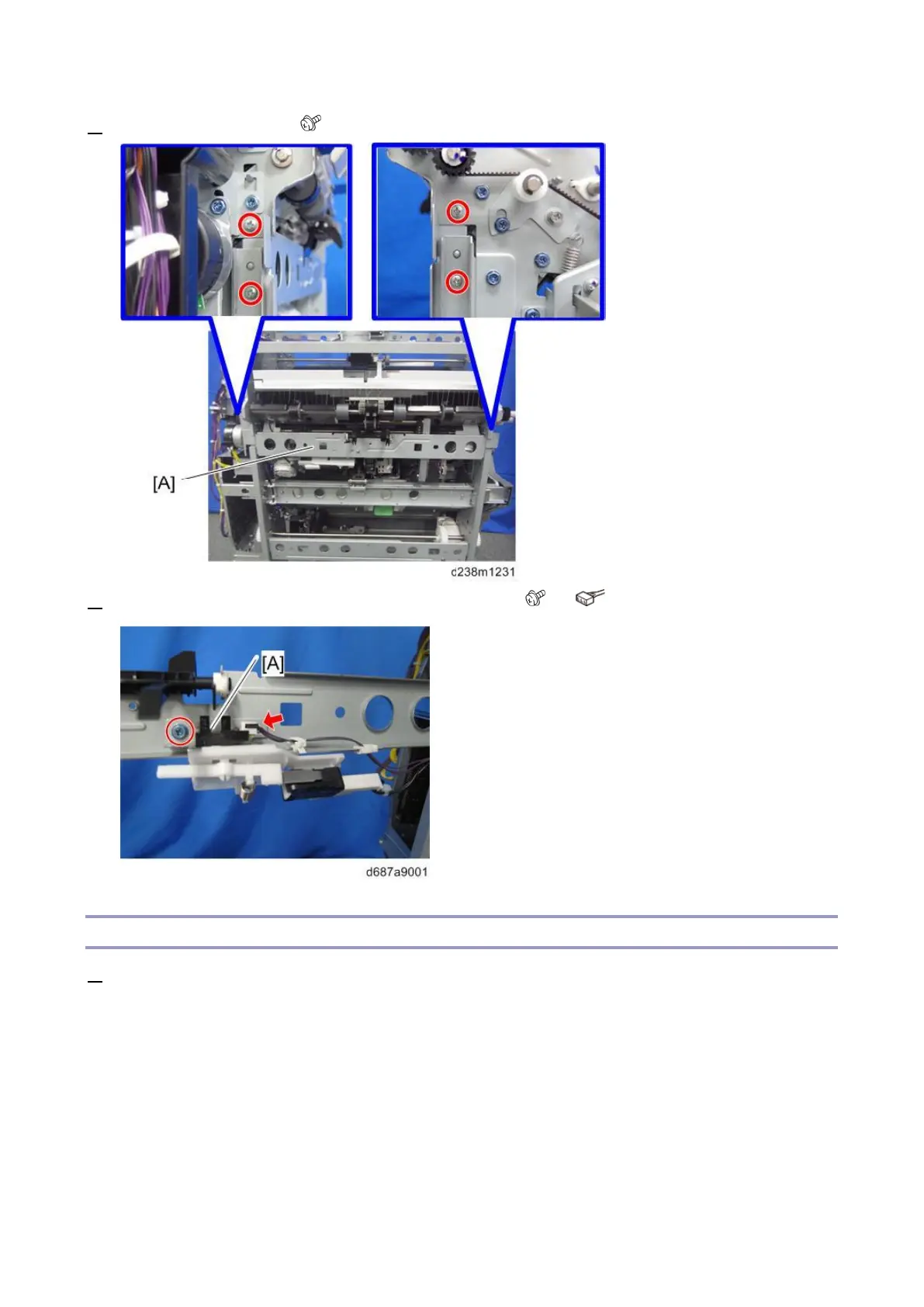

2. Remove the bracket [A] ( ×4).
3. Remove the Shift Tray Paper Surface Sensor (S13) [A] ( ×1, x1).
Shift Tray Upper Limit Switch (SW2)
1. Remove the bracket of the shift tray (Shift Tray Paper Surface Sensor (S13)).
