Ricoh SR3270 - Booklet Transport (Lower) Pressure Release HP Sensor (S5)

2.Replacement and Adjustment
115

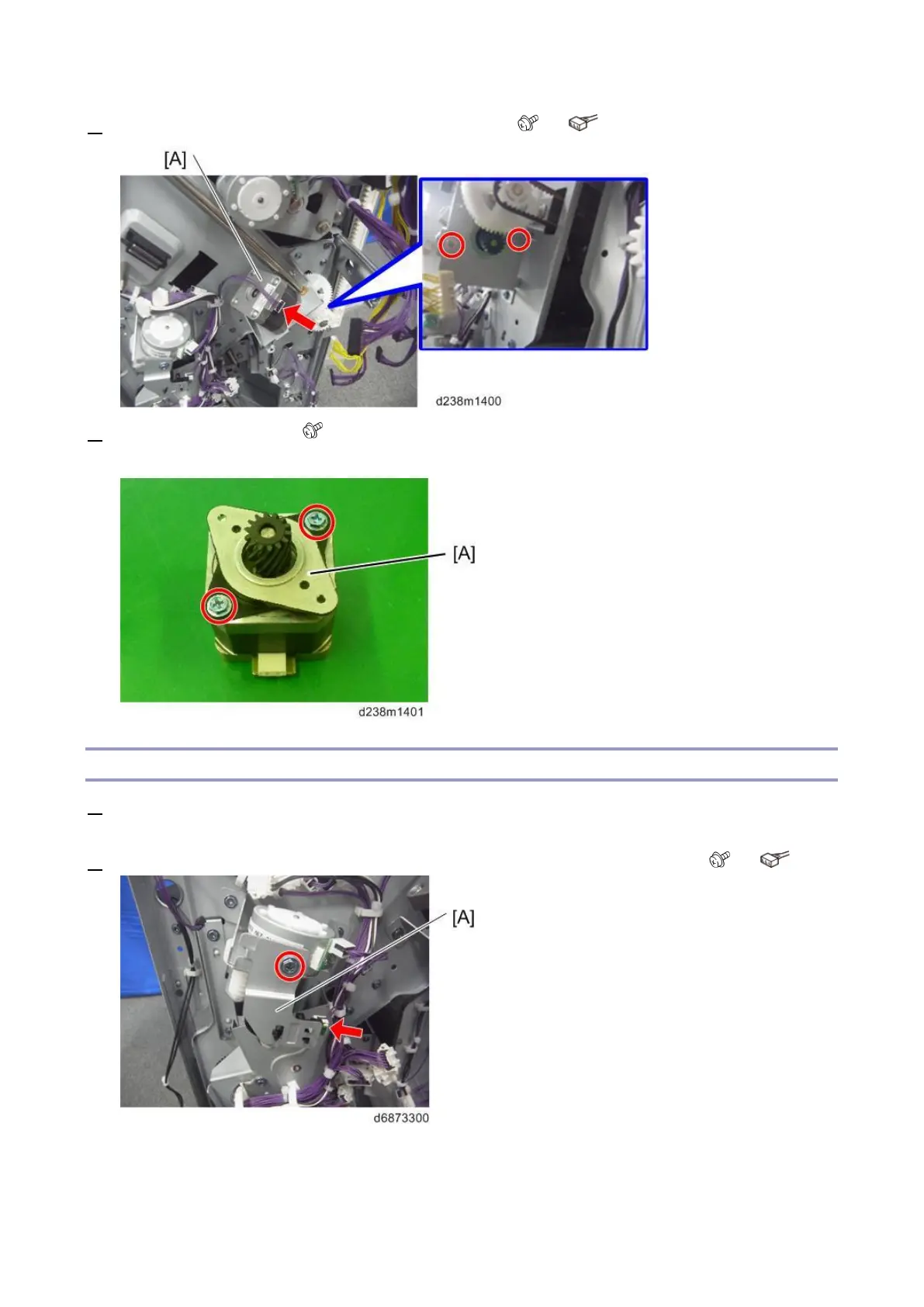

2. Remove the booklet stapler transfer motor (STM7) [A] ( ×2, ×1).
3. Remove the damper [A] ( ×2).
Attach it in the correct orientation as shown below.
Booklet Transport (Lower) Pressure Release HP Sensor (S5)
1. Remove the controller board bracket (Booklet Transport (Upper) Motor (STM8) (Booklet Finisher
SR3270 Only)).
2. Remove the Booklet Transport (Lower) Pressure Release HP Sensor bracket [A] ( ×1, ×1).
