Ricoh SR3270 - Paper Exit Transport Motor (DCM3)

2.Replacement and Adjustment
73

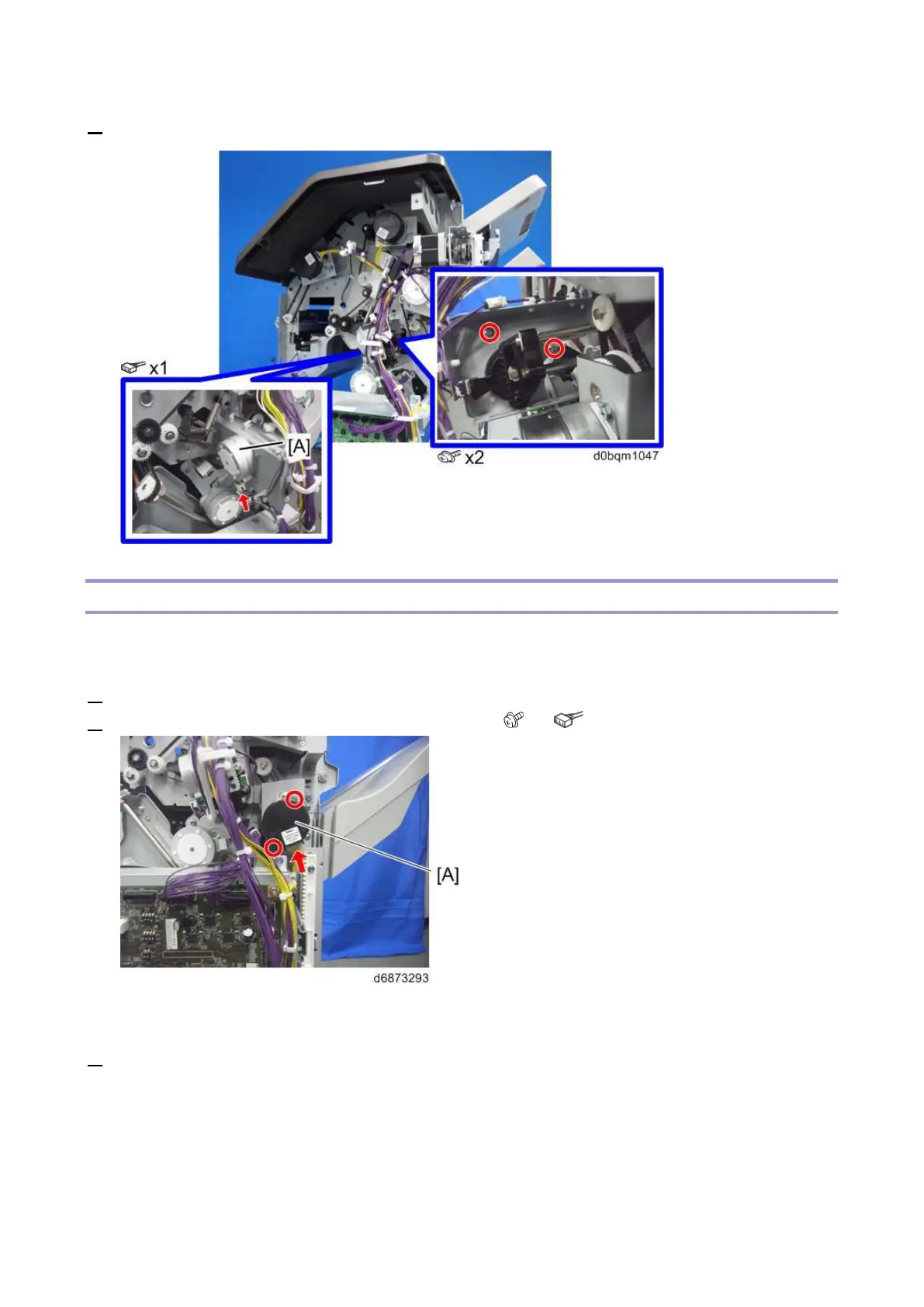

3. Remove the Shift Motor (STM1) [A].
Paper Exit Transport Motor (DCM3)
For Booklet Finisher SR3270
1. Remove the rear cover (Rear Cover).
2. Remove the Paper Exit Transport Motor (DCM3) [A] ( ×2, ×1).
For Finisher SR3260
1. Remove the rear cover (Rear Cover).
