Ricoh SR3270 - Folding Blade Motor (STM11); Folding Transport Motor (STM12); Booklet Tray Full Sensor 1 (S4), Booklet Tray Full Sensor 2 (S2)

2.Replacement and Adjustment
113

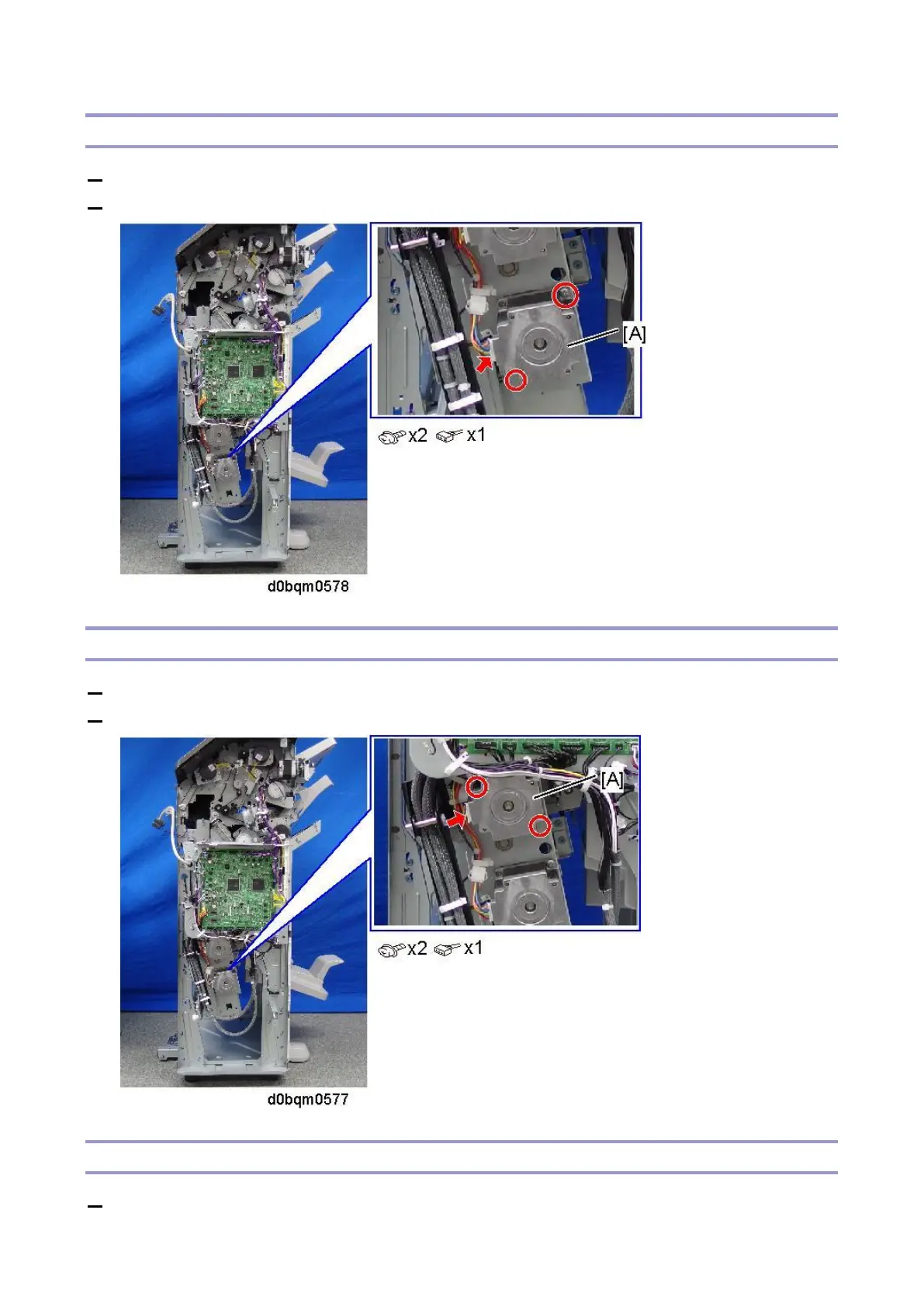

Folding Blade Motor (STM11)
1. Remove the rear cover (Rear Cover).
2. Remove the Folding Blade Motor (STM11) [A].
Folding Transport Motor (STM12)
1. Remove the rear cover (Rear Cover).
2. Remove the Folding Transport Motor (STM12) [A].
Booklet Tray Full Sensor 1 (S4), Booklet Tray Full Sensor 2 (S2)
1. Pull out the saddle stitch unit (Saddle Stitch Unit).
