Paper Exit Guide
Overview

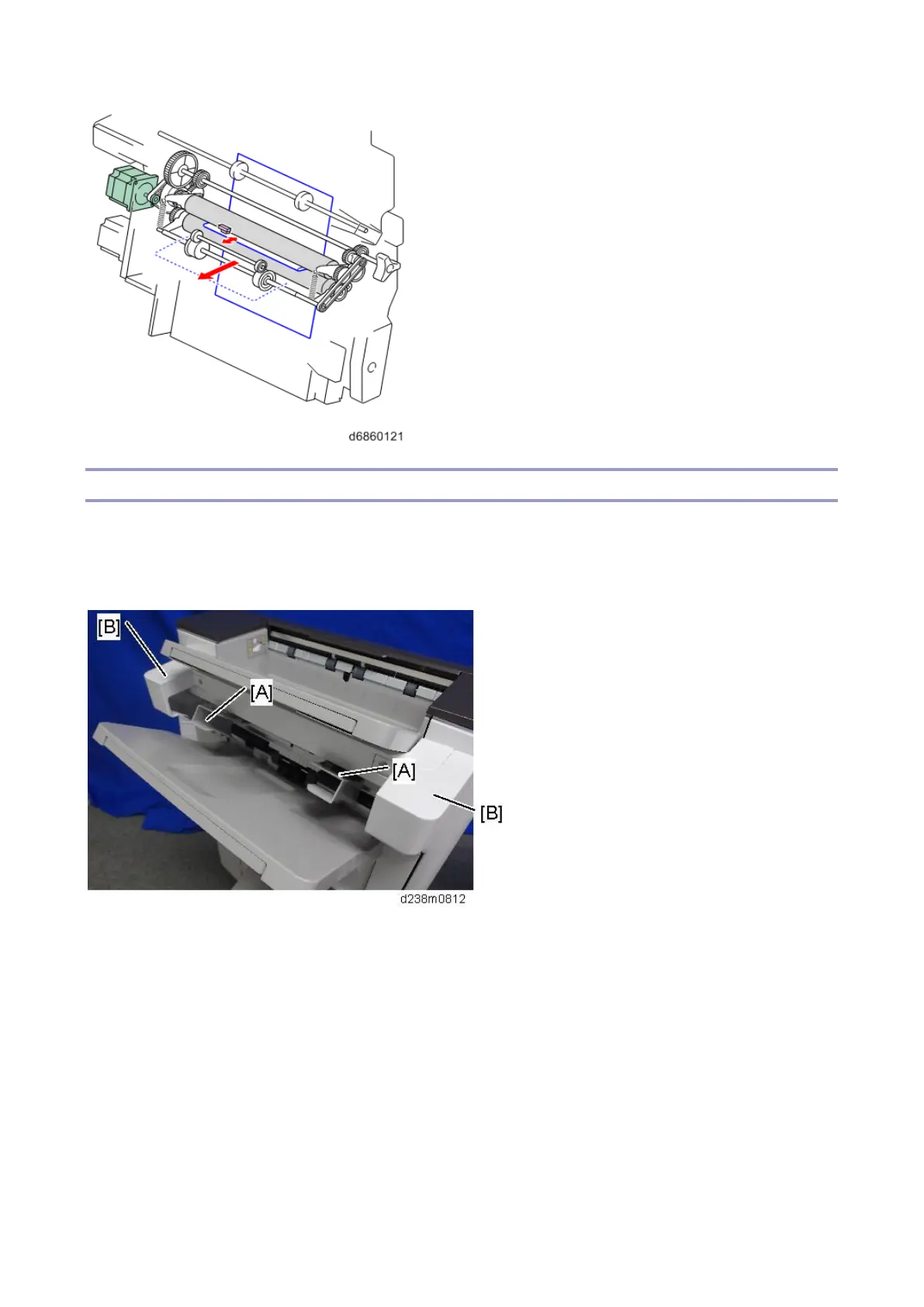

To achieve stable stacking of printouts and to prevent users from touching the printouts, paper exit
guides [A] and paper exit guide covers [B] have been added.
Drive
With the Paper Exit Guide Drive Motor (STM16) [A] and the timing belt, the paper exit guides on both
sides move at the same time.
Home position is detected by the Paper Exit Guide HP Sensor (S35) [B].
