1.Detailed Descriptions
31

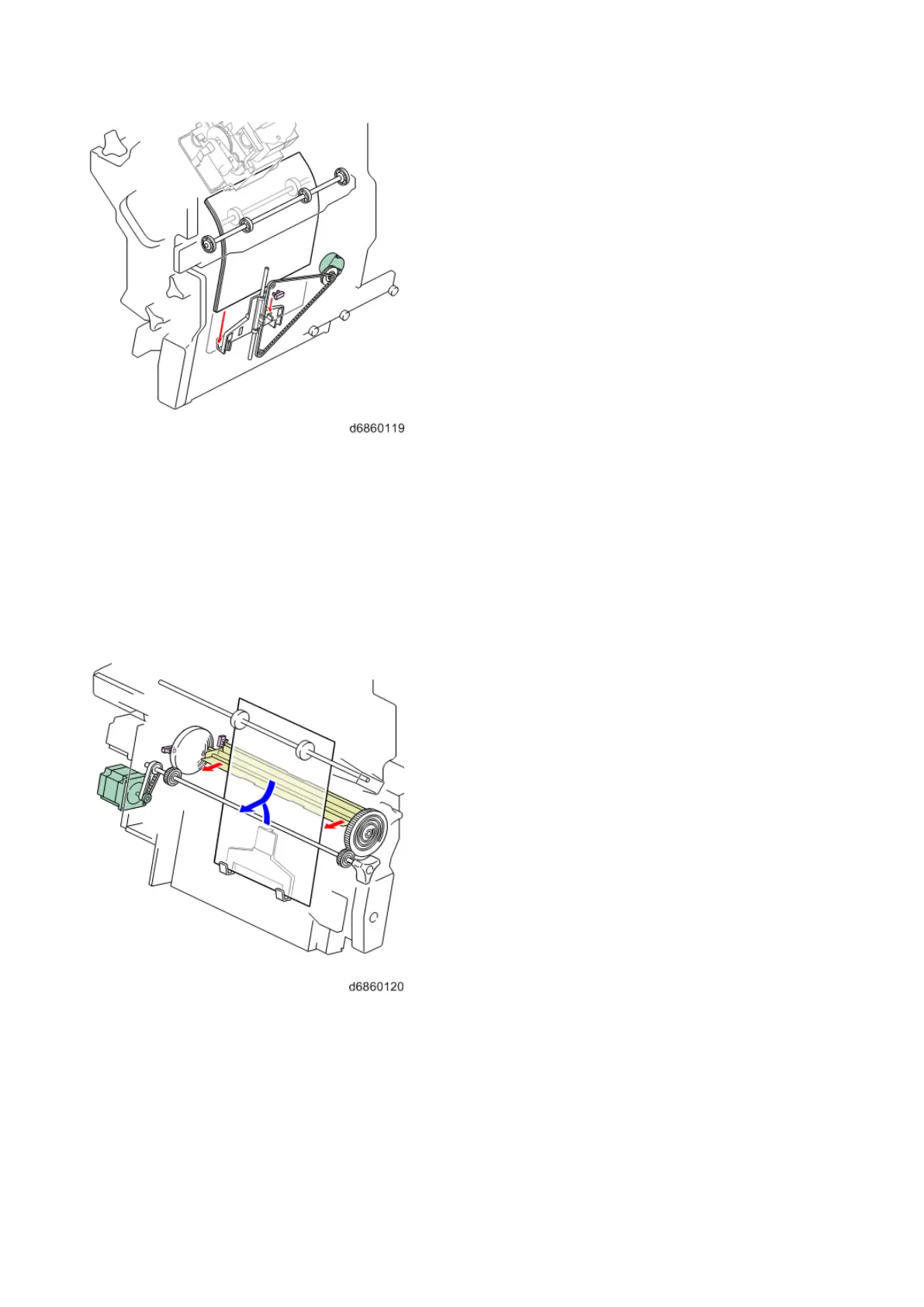

Folding blade operation
The binding position is pressed by the movement of the folding blade, and pushed in until the folding
roller grips.
The movement is performed by front and rear folding cams, and the folding blade moves horizontally.
The rotation of the folding cam is controlled by the Folding Cam HP Sensor (S26), and the folding blade
is controlled by the Folding Blade HP Sensor (S25).
This is driven by the Folding Blade Motor (STM11).
Folding roller operation
The folding rollers apply pressure up and down by springs, and press the binding parts.
When the stitching position reciprocates back and forth, the paper is folded again, and the paper is then
ejected.
