1.Detailed Descriptions
30

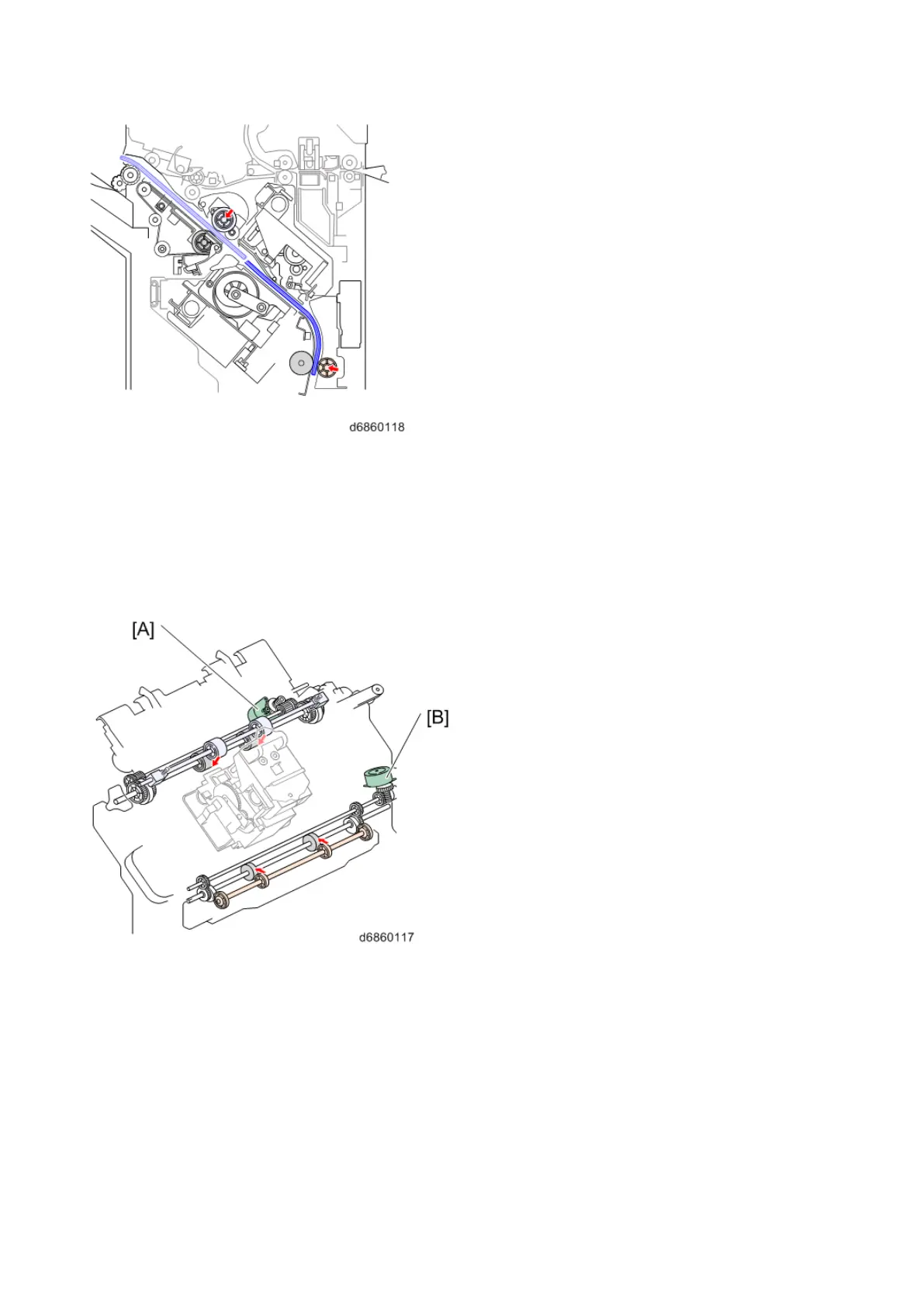

The booklet transport rollers transport the paper and apply pressure.
They transport the paper to the stapling position, and thence to the folding unit.
Transport and pressure/release are driven by upper and lower motors.
Upper: Booklet Transport (Upper) Pressure Release Motor (STM9) [A] (also performs trailing edge
fence retreat)
Lower: Booklet Transport (Lower) Pressure Release Motor (STM10) [B]
Edge stopper operation
The paper is transported to the leading edge stopper of the paper folding unit.
The leading edge stopper moves to the standby position according to the folding size.
