Ricoh SR3270 - Edge Stopper HP Sensor (S28)

2.Replacement and Adjustment
109

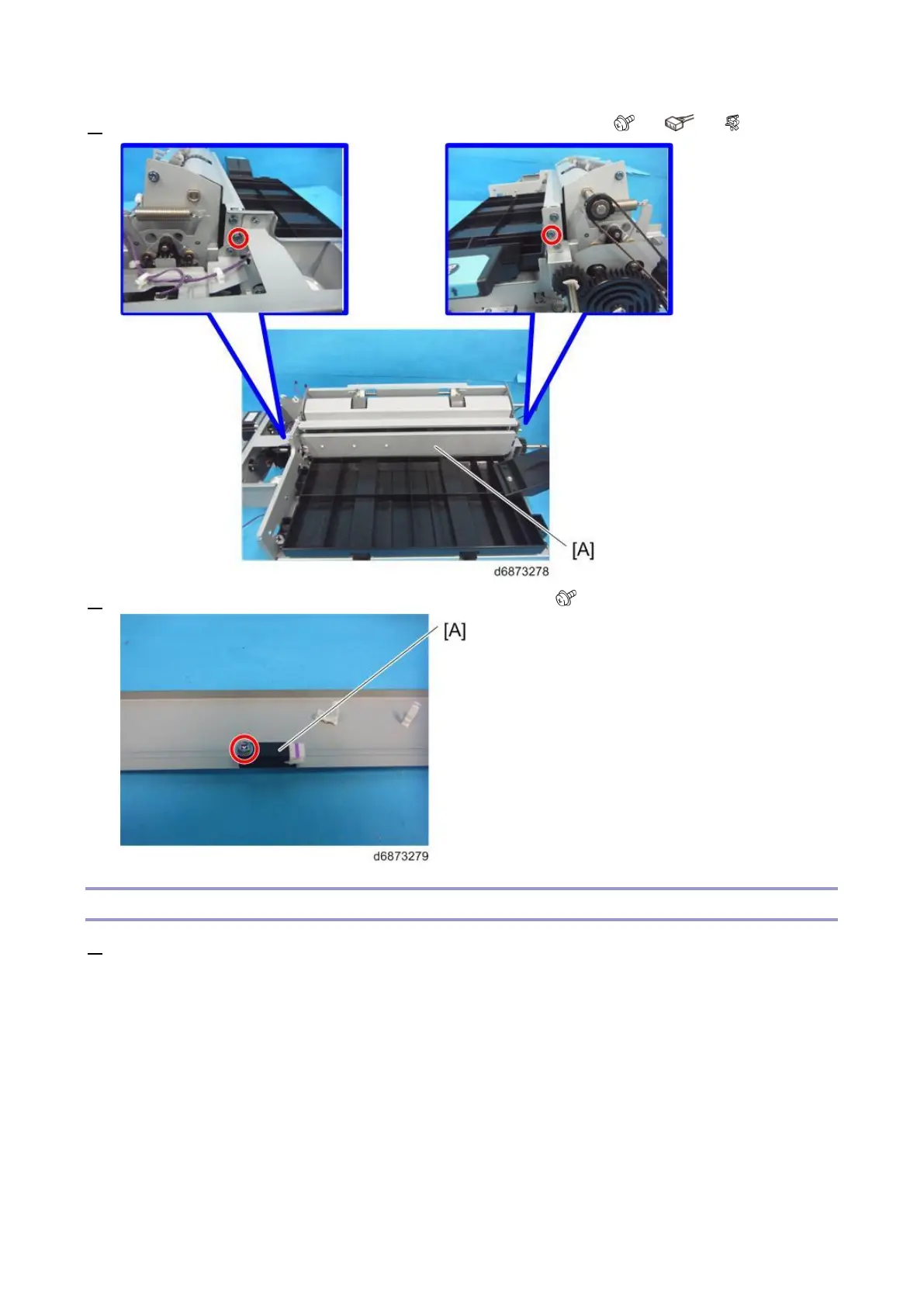

2. Remove the Edge Stopper Paper Surface Sensor (S27) bracket [A] ( ×2, ×1, ×4).
3. Remove the Edge Stopper Paper Surface Sensor (S27) [A] ( ×1).
Edge Stopper HP Sensor (S28)
1. Remove the Edge stopper motor (STM13). ( Edge stopper motor (STM13))
