Ricoh SR3270 - Main Unit; Paper Exit Guide Plate Motor (STM2); Paper Exit Guide Plate HP Sensor (S23); Proof Tray Full Sensor (S21)

2.Replacement and Adjustment
64
Main Unit

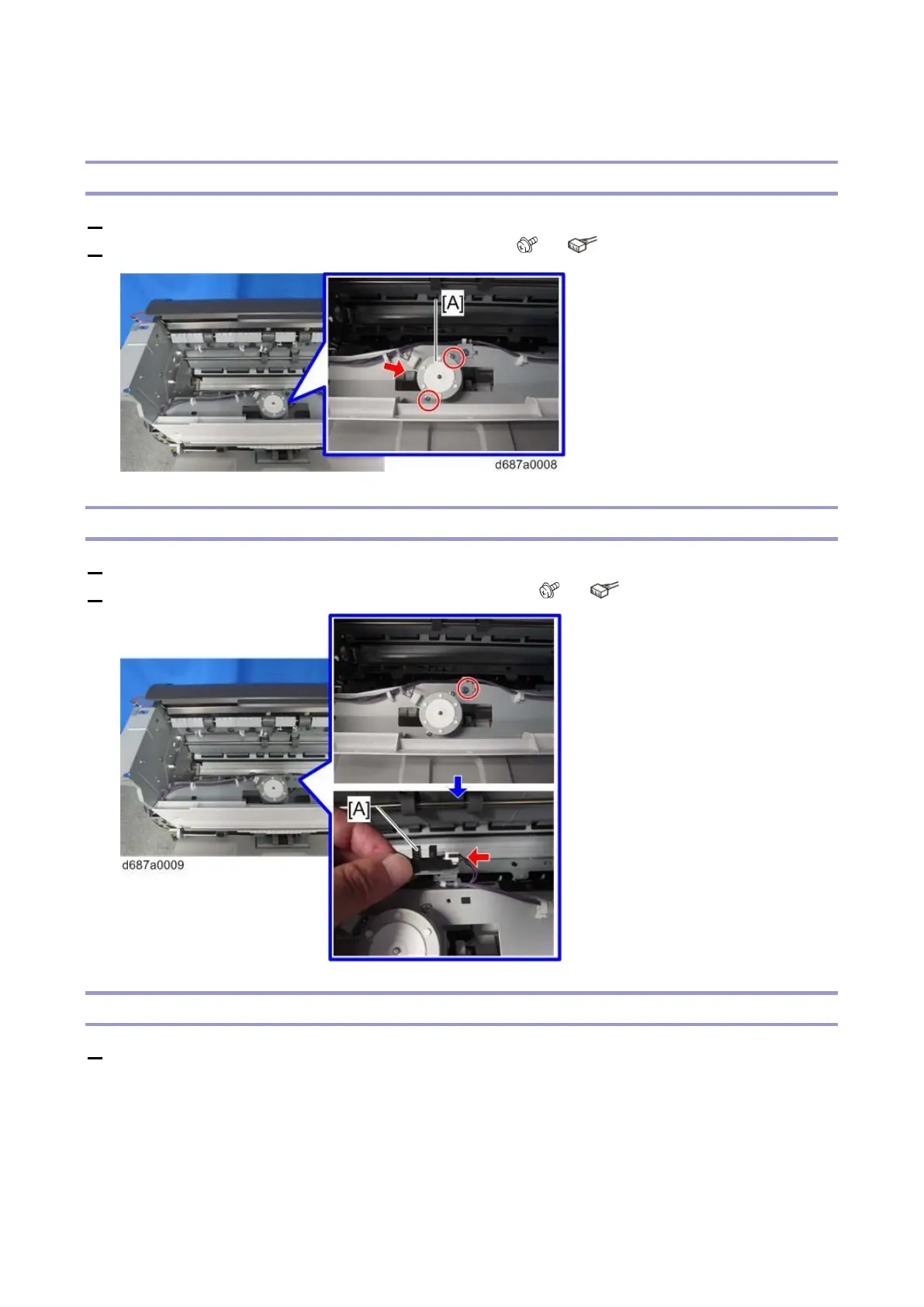

Paper Exit Guide Plate Motor (STM2)
1. Remove the proof tray (Proof Tray).
2. Remove the Paper Exit Guide Plate Motor (STM2) [A] ( ×2, ×1).
Paper Exit Guide Plate HP Sensor (S23)
1. Remove the proof tray (Proof Tray).
2. Remove the Paper Exit Guide Plate HP Sensor (S23) [A] ( ×1, x1).
Proof Tray Full Sensor (S21)
1. Remove the proof tray (Proof Tray).
