Ricoh SR3270 - Shift Motor (STM1)

2.Replacement and Adjustment
72

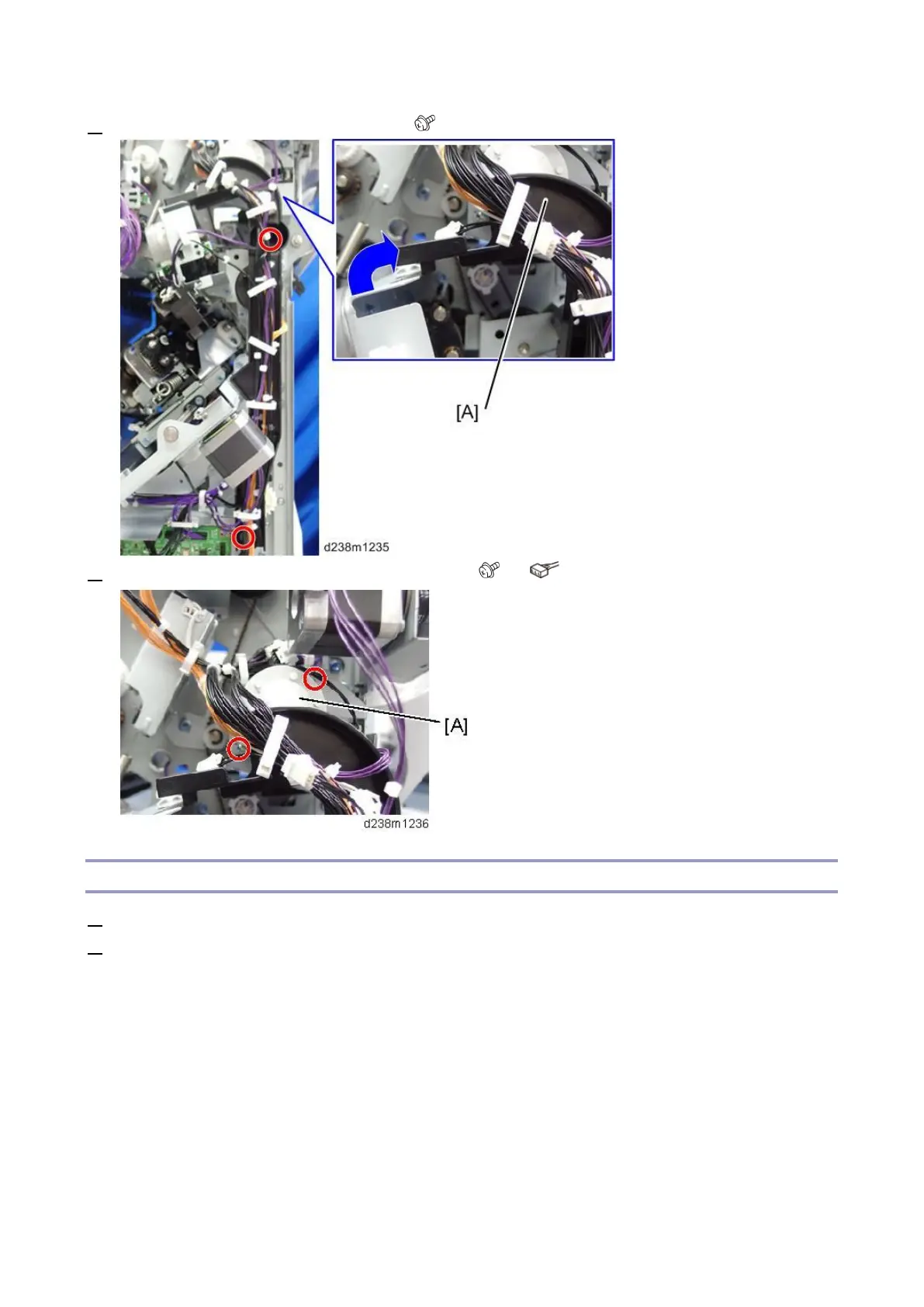

2. Move the harness guide [A] to the right. ( ×2).
3. Remove the Positioning Roller Motor (STM5) [A] ( ×2, ×1).
Shift Motor (STM1)
1. Remove the rear cover (Rear Cover).
2. Remove the upper left cover (Upper Left Cover).
