Ricoh SR3270 - Saddle Stitch Unit (Booklet Finisher SR3270); Stapler Unit

2.Replacement and Adjustment
98
Saddle Stitch Unit (Booklet Finisher SR3270)
Stapler Unit

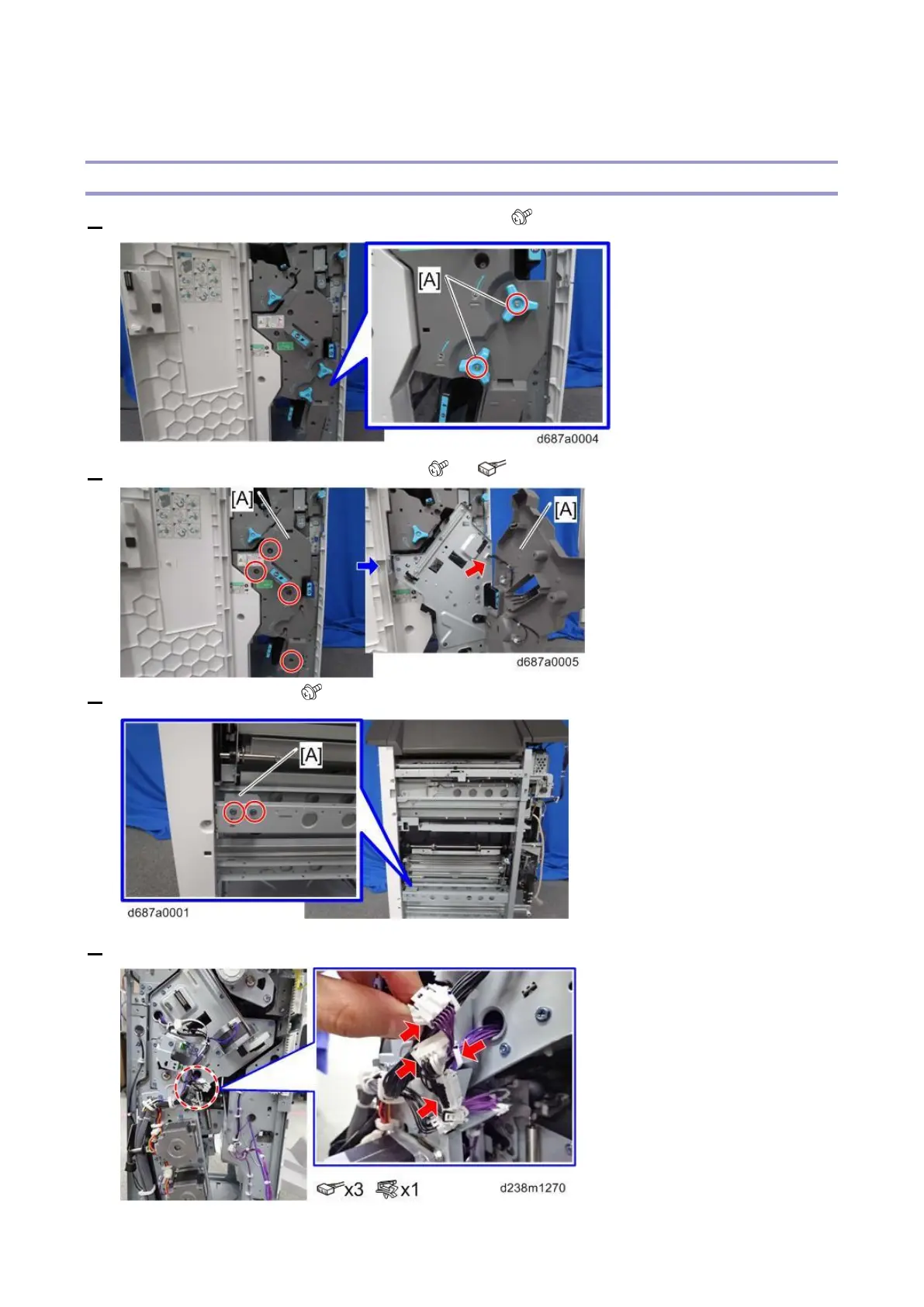

1. Open the front cover, and then remove two knobs [A] ( x1 for each)
2. Remove the booklet stapler unit cover [A] ( x4, x1).
3. Remove the stopper [A] ( ×2).
4. Disconnect three connectors and one clamp at the rear side of the saddle stitich unit.
