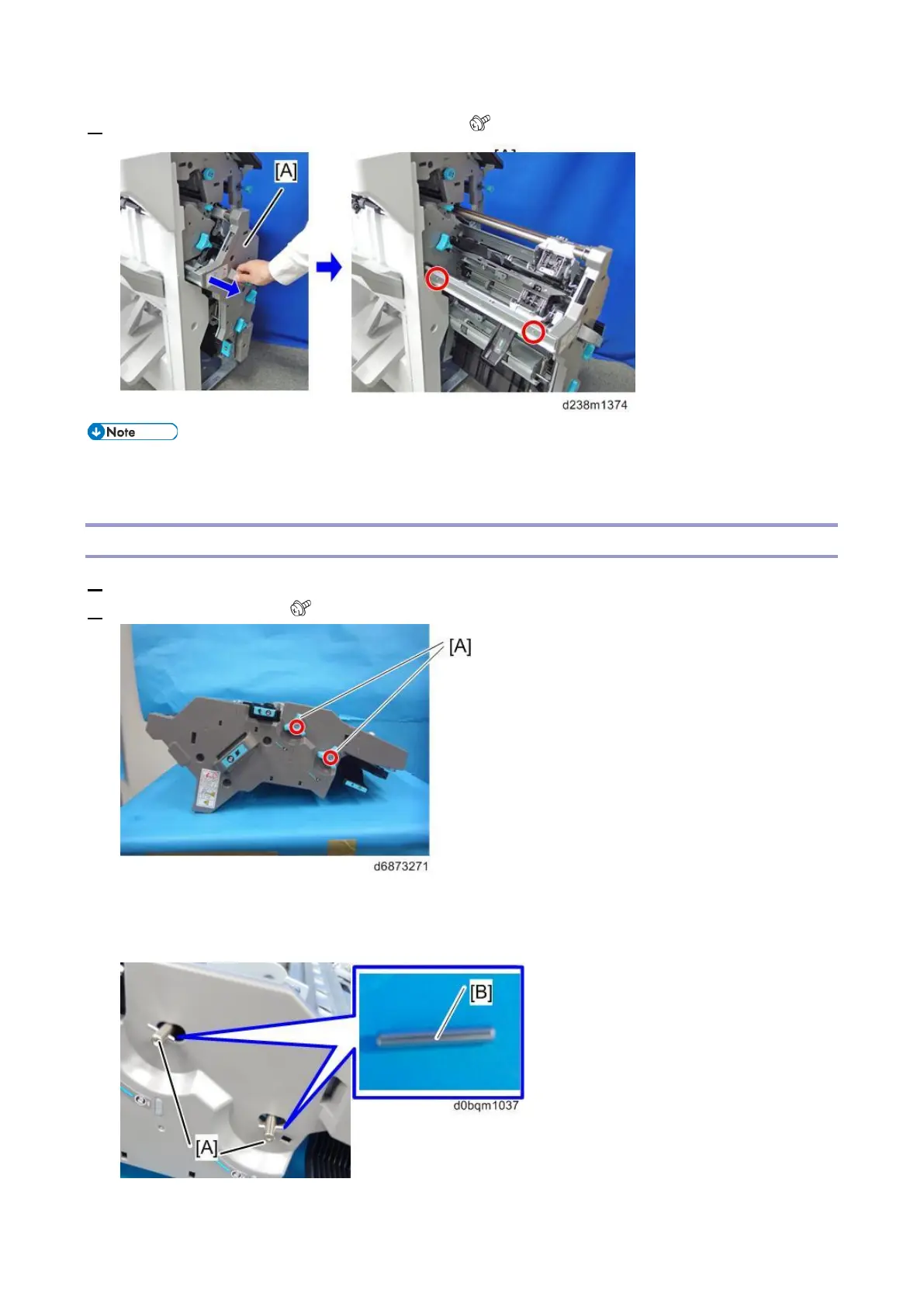

5. Pull out the saddle stitch unit [A] and remove it. ( ×2)
• When you remove the booklet stapler unit from the main frame, be careful not to catch the
cable on the frame.
Center-Folding Unit
1. Remove the saddle stitch unit (Saddle Stitch Unit).
2. Remove the knobs [A] ( ×2).
The fixing metal bar [B] left in the shaft [A] after removing the knob can easily drop out and become
lost. Remove it together with the knob and keep it in a safe place until the knob needs to be
reattached.
