Ricoh SR3270 - System Layouts; Shift System Components

1.Detailed Descriptions
13

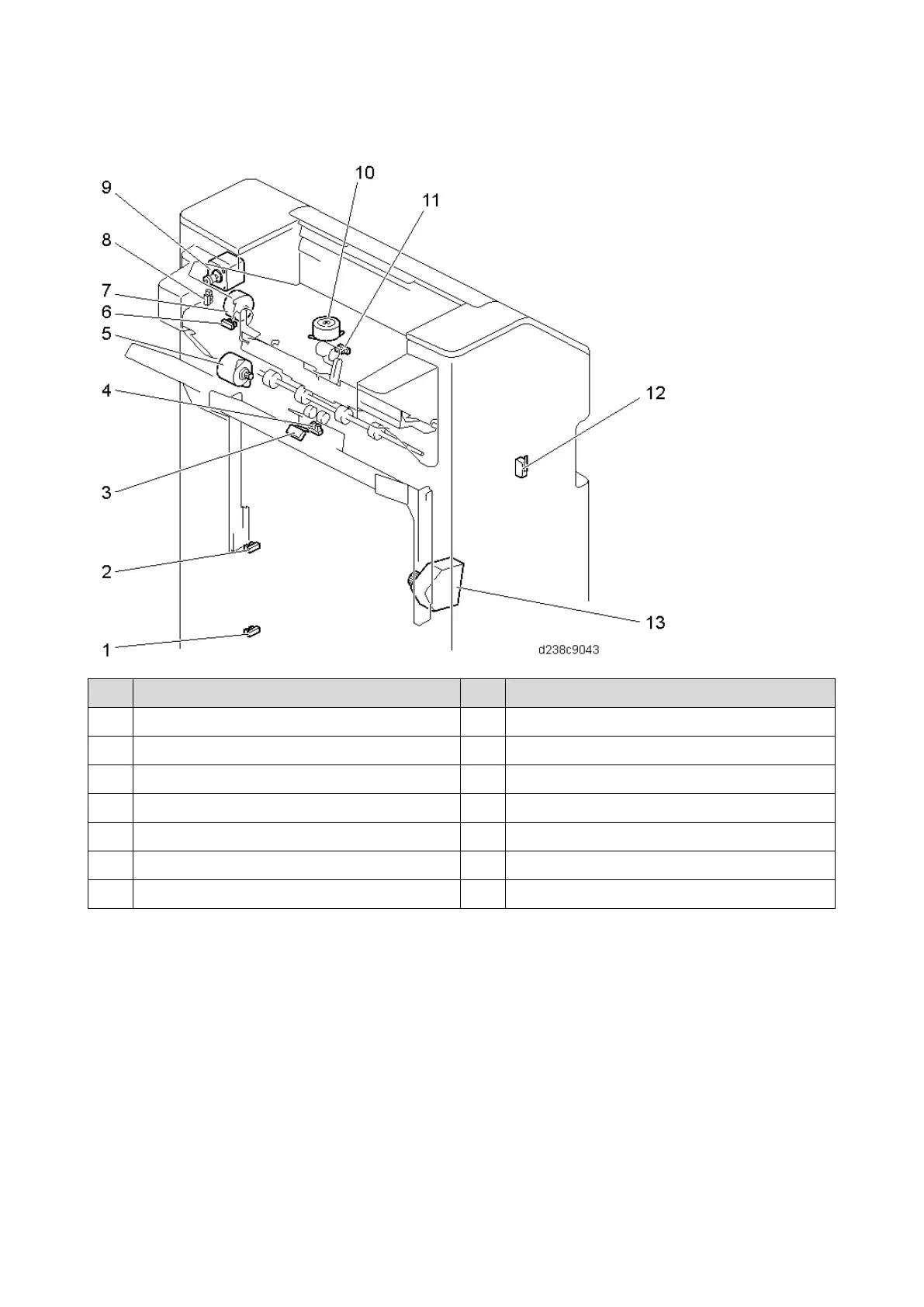

Shift system
No.
Description
No.
Description
1
Shft tray lower limit sensor (lower) (S12)
8
Paper Exit Guide HP Sensor (S35)
2
Shft tray lower limit sensor (upper) (S1)
9
Paper Exit Guide Drive Motor (STM16)
3
Shift Tray Upper Limit Switch (SW2)
10
Paper Exit Guide Plate Motor (STM2)
4
Shift Tray Paper Surface Sensor (S13)
11
Paper Exit Guide Plate HP Sensor (S23)
5
Paper Exit Transport Motor (DCM3)
12
Front Door Switch (SW1)
6
Positioning Roller HP Sensor (S14)
13
Tray Lift Motor (DCM4)
7
Positioning Roller Motor (STM5)
-
-
