Ricoh SR3270 - Jogger System Components

1.Detailed Descriptions
14

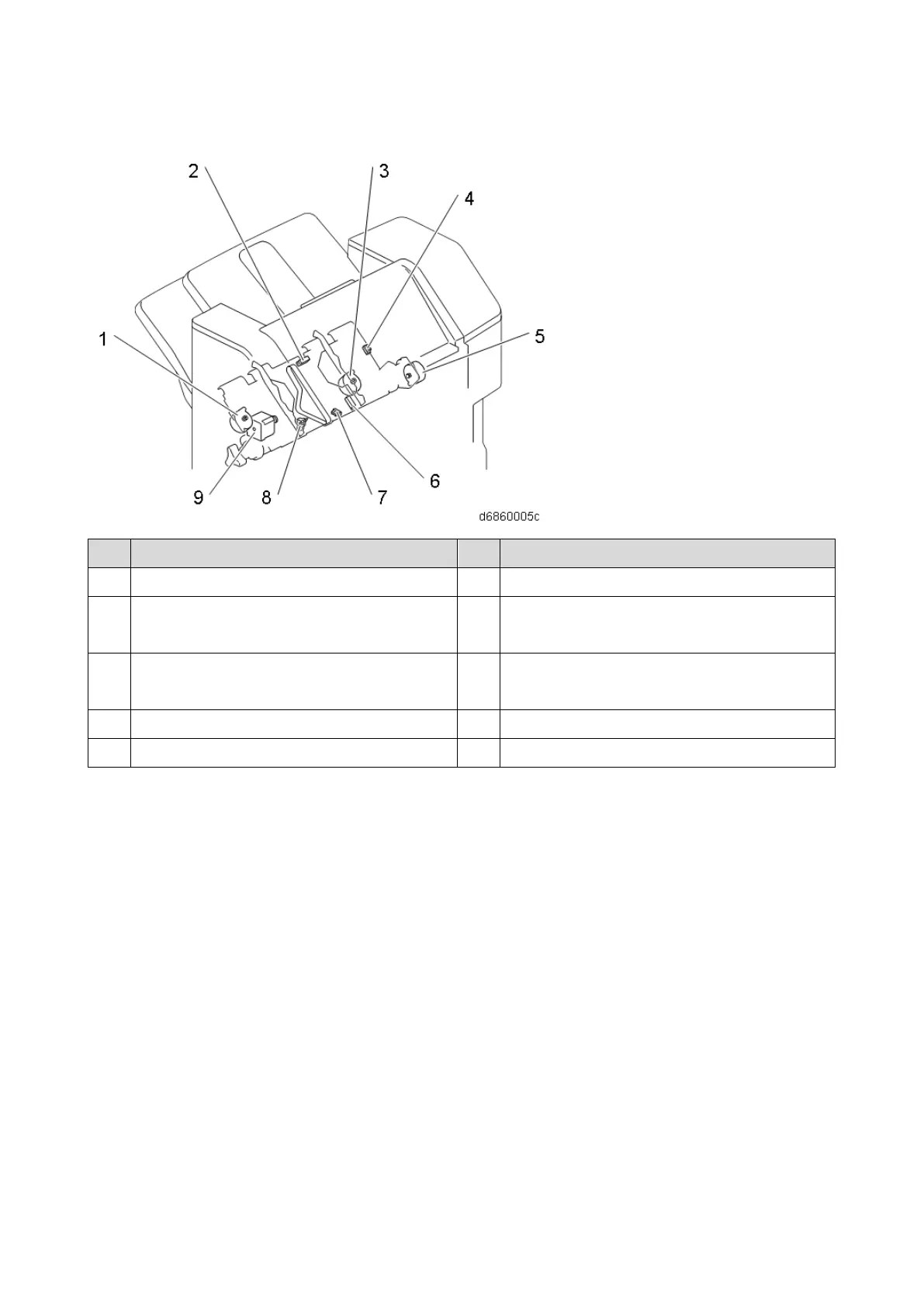

Jogger system
No.
Description
No.
Description
1
Jogger Motor (STM3)
6
Stapler Tray Paper Sensor (S9)
2
Paper Exit Sensor (S15)
7
Booklet Transport (Upper) Pressure
Release HP Sensor (S8)
*1
3
Booklet Transport (Upper) Pressure
Release Motor (STM9)
*1
8
Feedout Pawl HP Sensor (S10)
4
Jogger HP Sensor (S11)
9
Feedout Pawl Motor (STM4)
5
Booklet Transport (Upper) Motor (STM8)
*1
*1: Booklet Finisher SR3270 only
