Ricoh SR3270 - Paper Folding System Components

1.Detailed Descriptions
17

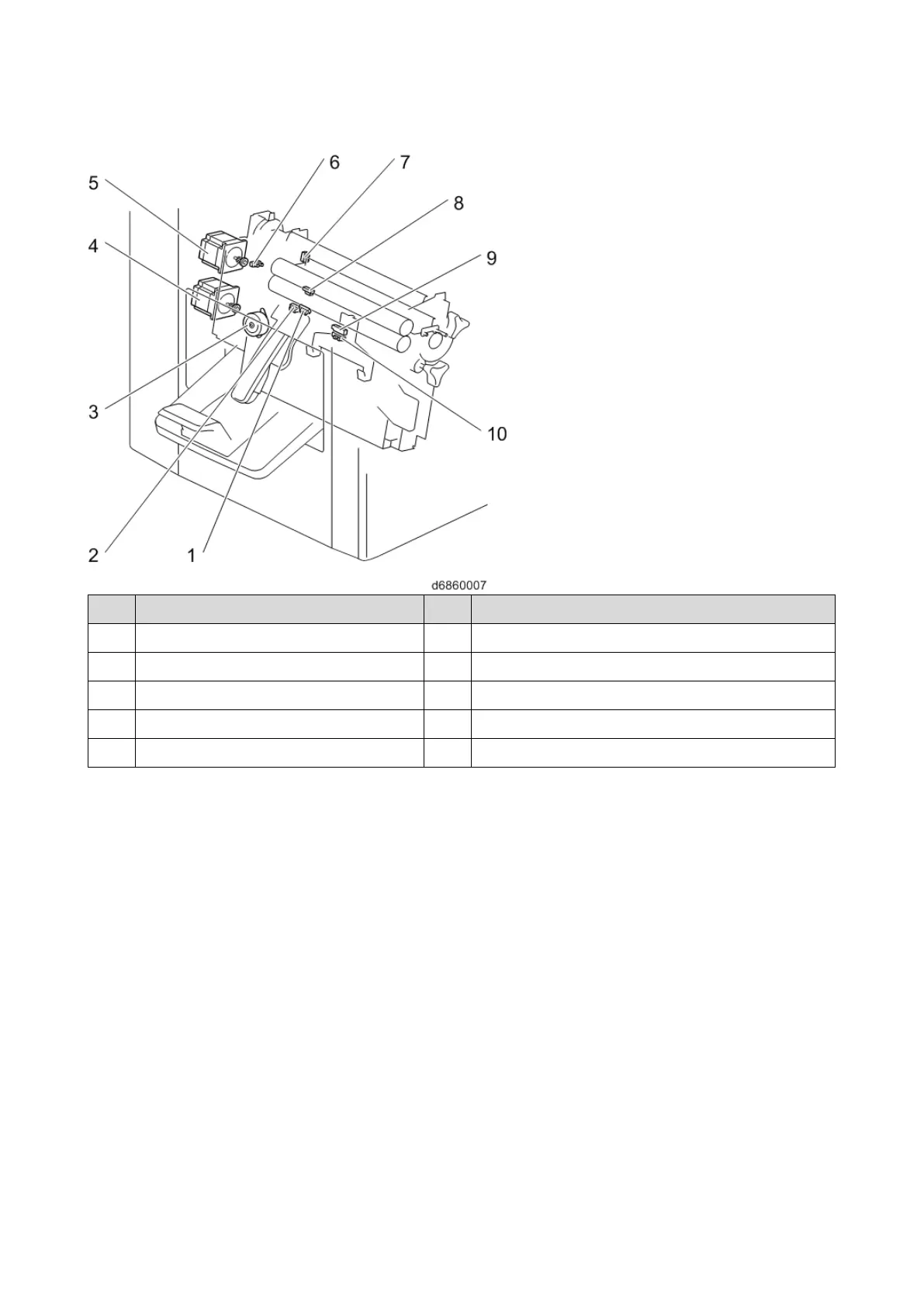

Paper folding system (Booklet Finisher SR3270 only)
No.
Description
No.
Description
1
Booklet Tray Full Sensor 1 (S4)
6
Folding Cam HP Sensor (S26)
2
Booklet Tray Full Sensor 2 (S2)
7
Folding Blade HP Sensor (S25)
3
Edge stopper motor (STM13)
8
Center-folding Paper Exit Sensor (S24)
4
Folding Blade Motor (STM11)
9
Edge Stopper Paper Surface Sensor (S27)
5
Folding Transport Motor (STM12)
10
Edge Stopper HP Sensor (S28)
