Ricoh SR3270 - Page 89

2.Replacement and Adjustment
83

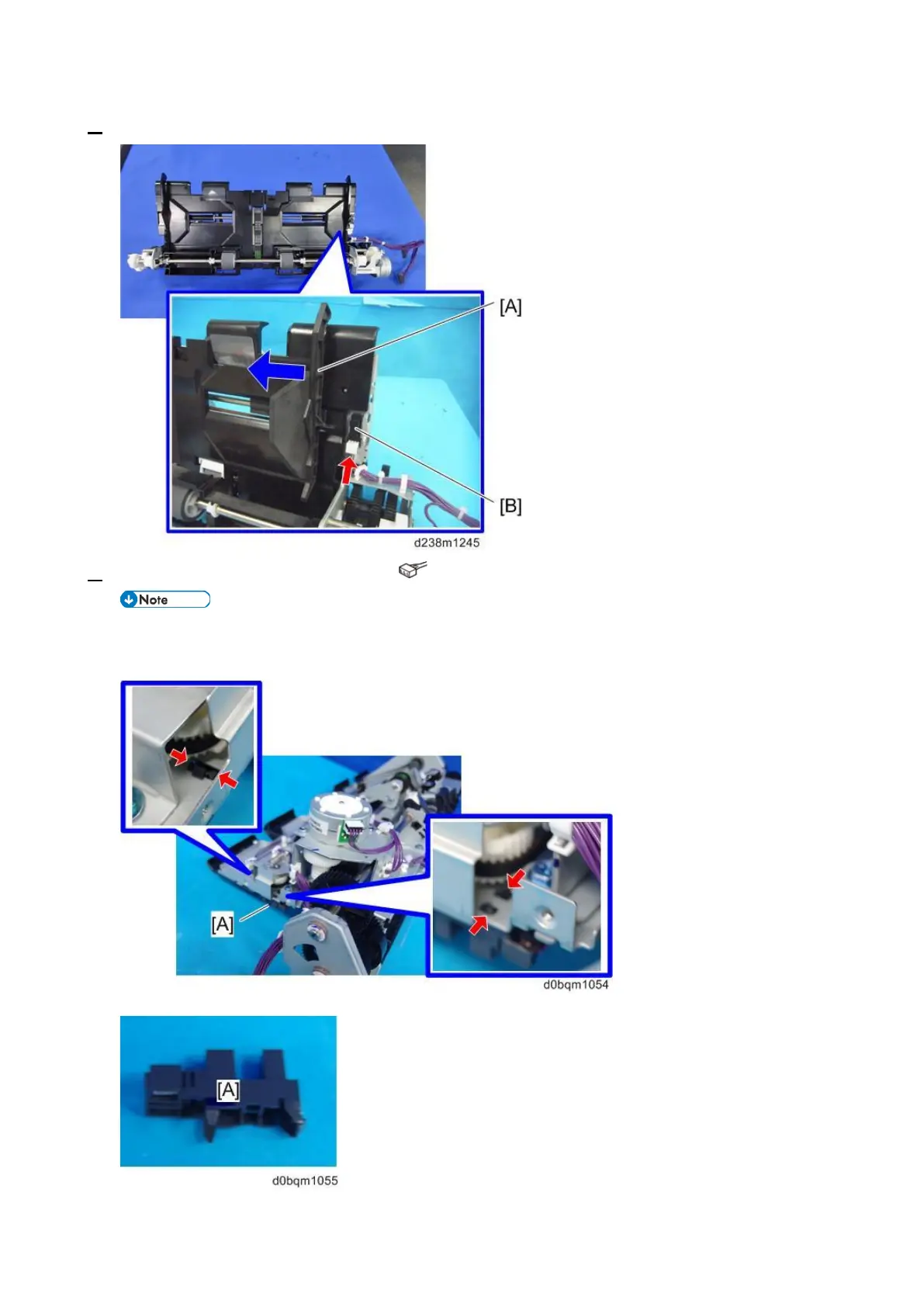

2. Separate the jogger fence [A] from the Jogger HP Sensor (S11) [B].
3. Remove the Jogger HP Sensor (S11) ( ×1).
• Release and remove the tab with a small driver, etc.
