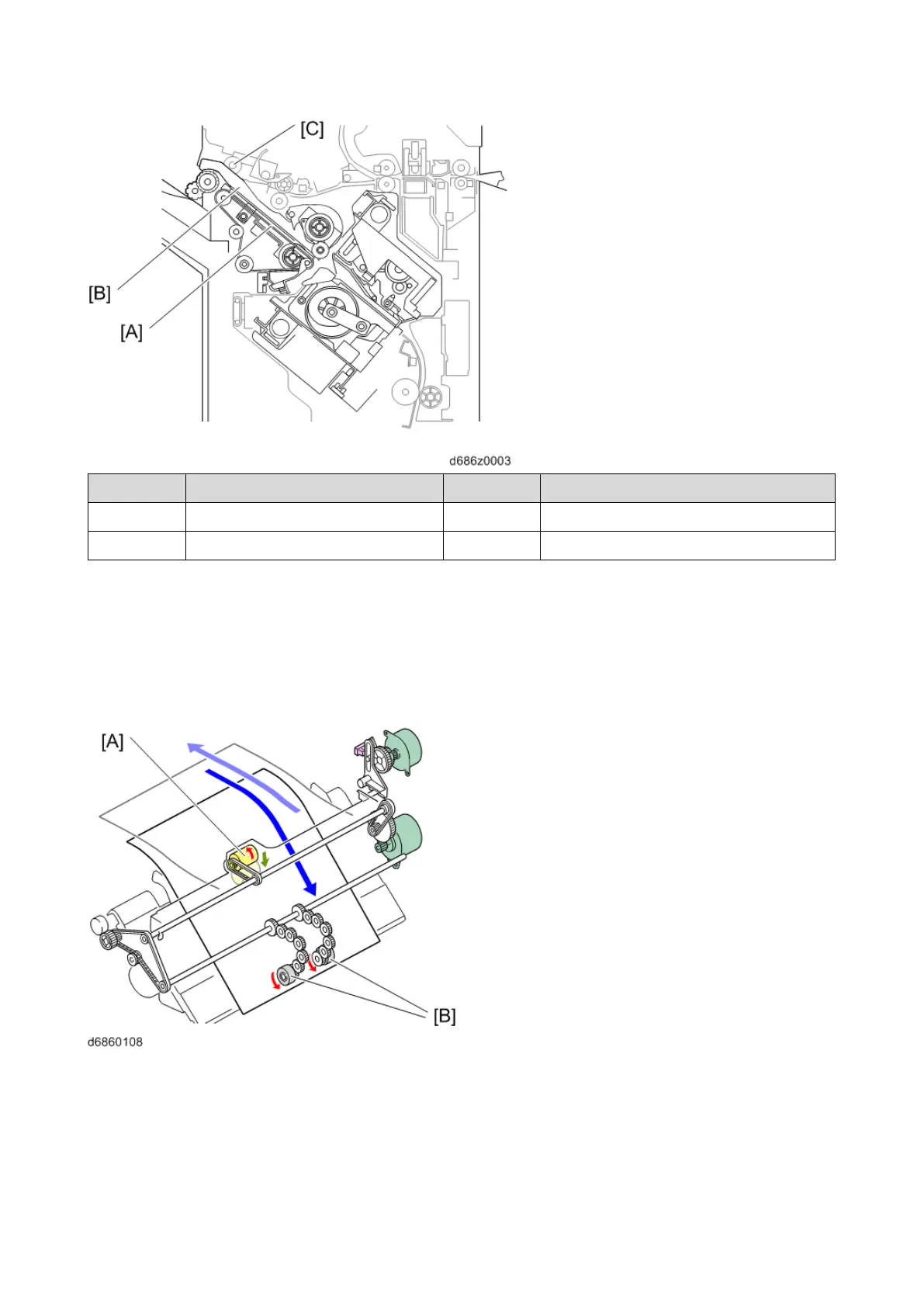

Stacking mechanism (approach roller operation)
The rear edges of the paper stacked in the stapler tray are aligned one sheet at a time.
The paper is transferred to the reverse roller [B] by the approach roller [A], driven by the Positioning
Roller Motor (STM5), after the Intermediate Transport (Left) Sensor (S19) turns OFF.
The paper is then continuously pressed against the trailing edge fence by the reverse roller [B].
• Trailing edge fence operation
The trailing edge fence used depends on the binding mode of the stapler. There are two trailing
edge fences, upper and lower.
Upper trailing edge fence
Operated by the Booklet Transport (Upper) Pressure Release Motor (STM9).
