Ricoh SR3270 - Staple Near-End Detection

1.Detailed Descriptions
38

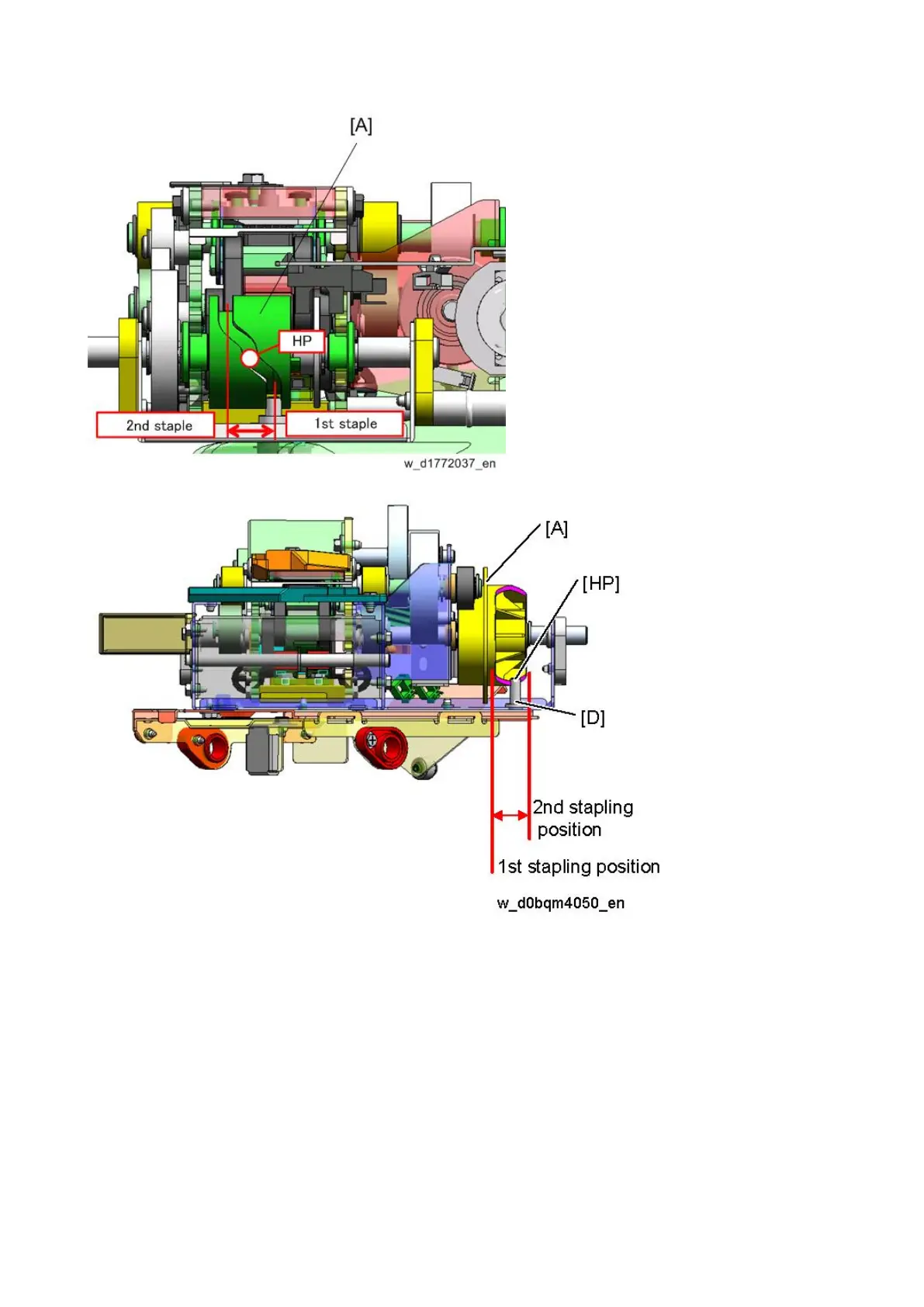

The moving and stapling is done by the Stapleless Stapler Drive Motor (DCM9) [B] and the home
position is detected by the Stapleless stapler drive HP sensor (S38) [C].
