Ricoh SR3270 - Punch Unit PU3080 (D3 G5); Changes and Specifications

1.Detailed Descriptions
40

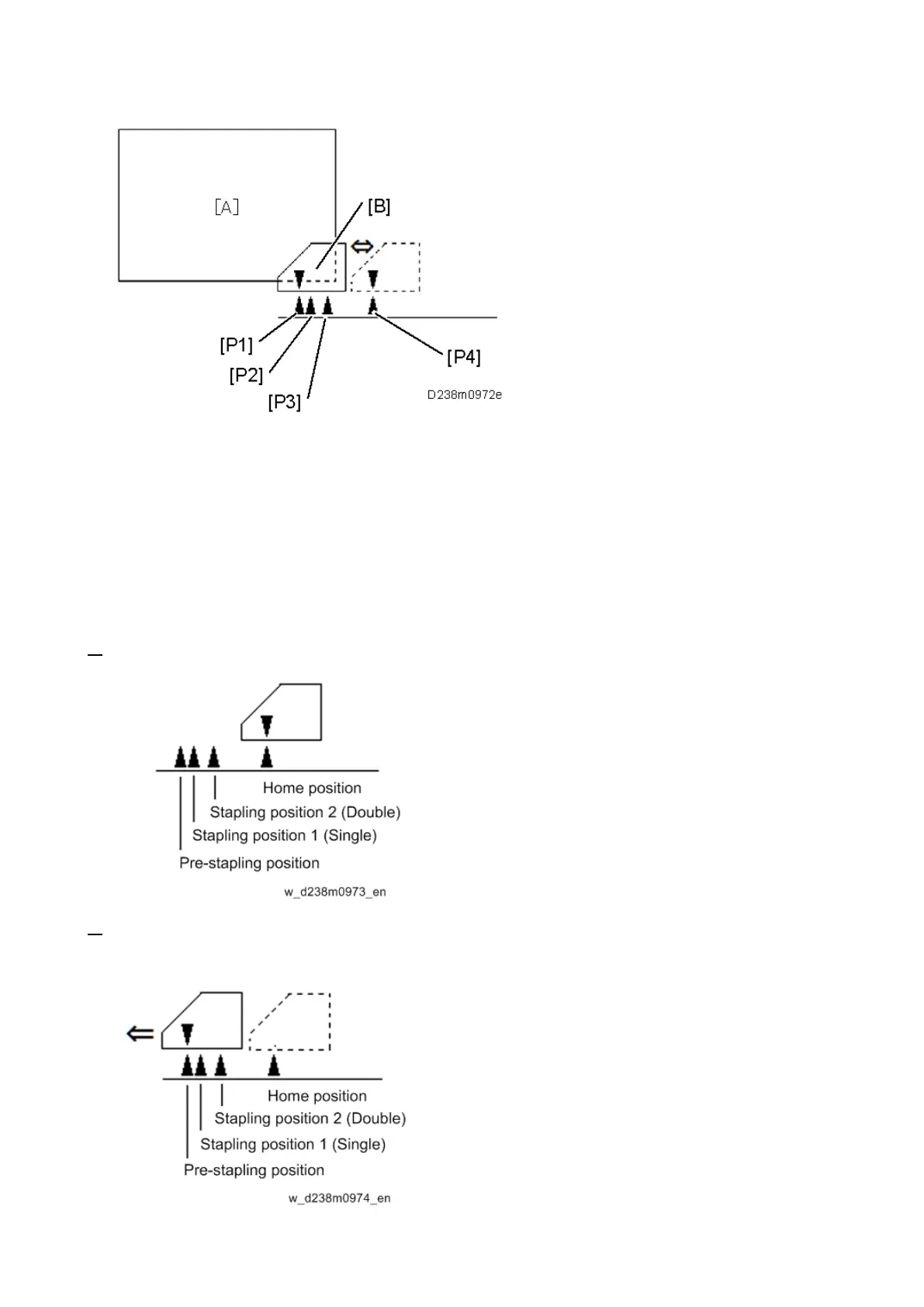

[A]: Paper
[B]: Stapleless stapler unit
[P1]: Pre-stapling position
[P2]: Stapling position 1 (Single)
[P3]: Stapling position 2 (Double)
[P4]: Home position
Single stapling operation
1. The stapleless stapler unit is at the home position before receiving paper.
2. The stapleless stapler unit moves to the pre-stapling position when starting a stapleless stapling
job.
