Punch Hole Alignment
SP
Description
SP6-100-001
Sub-scanPunchPosAdj:2K/3K FIN JPN/EU: 2-Hole
SP6-100-002
Sub-scanPunchPosAdj:2K/3K FIN NA: 3-Hole
SP6-100-003
Sub-scanPunchPosAdj:2K/3K FIN Europe: 4-Hole
SP6-100-004
Sub-scanPunchPosAdj:2K/3K FIN NEU: 4-Hole
SP6-100-005
Sub-scanPunchPosAdj:2K/3K FIN NA: 2-Hole
SP6-101-001
Main-scanPunchPosAdj:2K/3K FIN JPN/EU: 2-Hole
SP6-101-002
Main-scanPunchPosAdj:2K/3K FIN NA: 3-Hole
SP6-101-003
Main-scanPunchPosAdj:2K/3K FIN Europe: 4-Hole
SP6-101-004
Main-scanPunchPosAdj:2K/3K FIN NEU: 4-Hole
SP6-101-005
Main-scanPunchPosAdj:2K/3K FIN NA: 2-Hole
Paper Position Detection

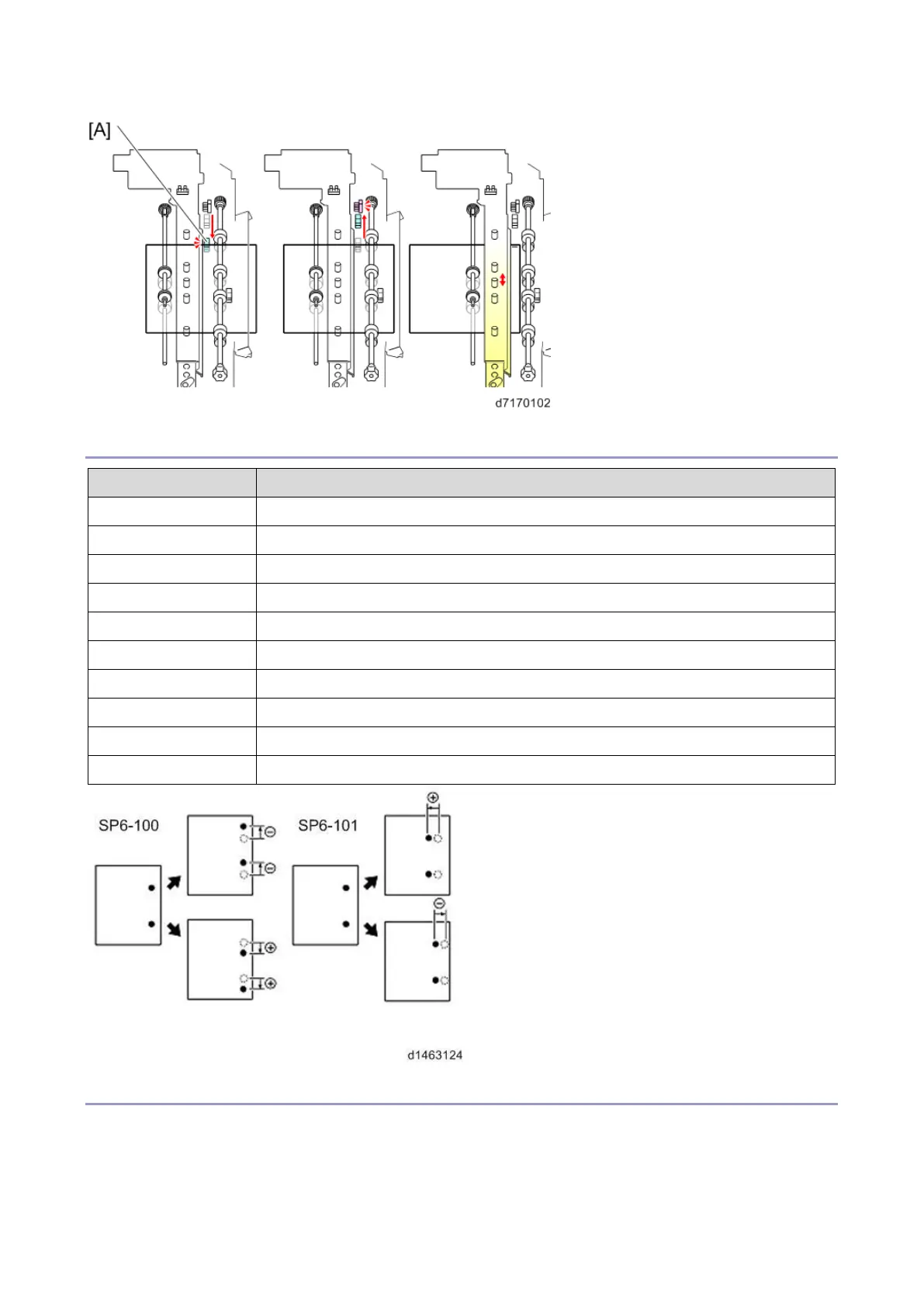

When the Horizontal Registration Correction Sensor (S29) [A] of the punch unit detects the leading
edge of the paper from the MFP, the Horizontal Registration Correction Motor (STM15) [B] is driven,
and starts to move the punch unit to the front.
