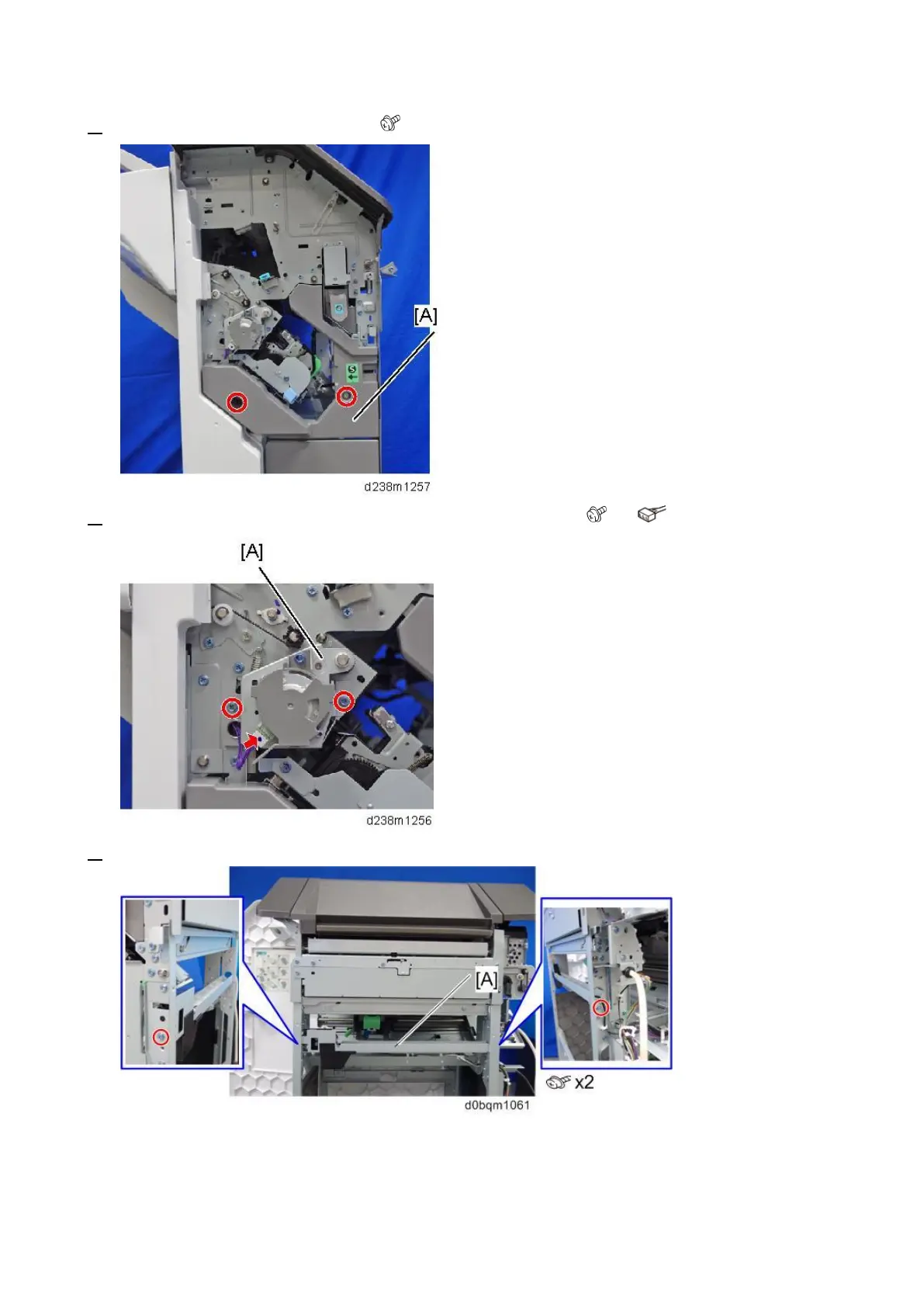

2. Remove the inner middle cover [A] ( ×2).
3. Remove the Paper Guide Drive Motor (STM18) with bracket [A] ( ×2, ×1).
4. Remove the bracket [A].
