90BRotary pump (2080A211/A411)
SmartLab: Automated Multipurpose X-ray Diffractometer 105

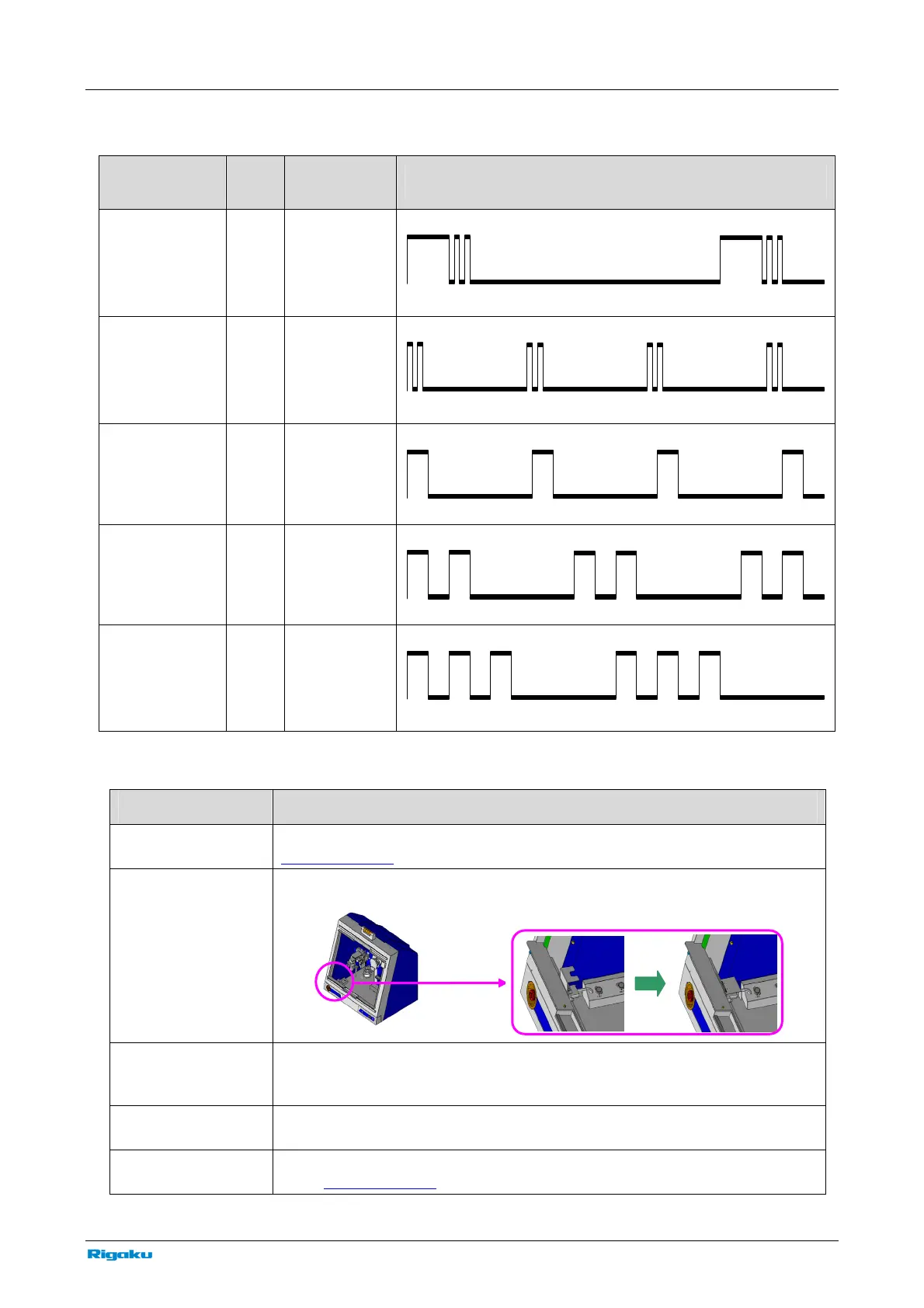

Table Patterns of the OPERATE lamp flashing and alarm sounds when an alarm generated
Alarm point Color
Continuously
On / flashing
Pattern
XG alarm Green Flashing
One long beep and two short beeps (repeats)
Attachment
connecting
cover is open
Green Flashing
Two short beeps (repeats)
Communication
error
Red Flashing
One beeps (repeats)
Encoder error Red Flashing
Two beeps (repeats)
Servo alarm Red Flashing
Three beeps (repeats)
Table Causes of alarm
Cause Description
XG alarm
An error has occurred in the x-ray generator (XG). See # 4 in
Troubleshooting
.
Attachment
connecting cover is
open
The cover of the attachment connection cable is open in the radiation
enclosure. Close the cover.
Communication
error
A communication error has occurred in the control board for the optical
devices in the incident and receiving optics. The cables for the incident and
receiving optics may be disconnected or broken.
Encoder error
An error has occurred in the encoder used to control the goniometer. The
encoder may not be adjusted correctly, or the detecting part may be stained.
Servo alarm
The protection circuit is working as a result of motor electrical overload. See
# 3 in Troubleshooting
.
400 ms
1000 ms
50 ms
200 ms
1000 ms
1000 ms
1000 ms
50 ms
50 ms
50 ms
200 ms
200 ms
200 ms
200 ms
200 ms
200 ms
200 ms
2500 ms
