TECHNICAL INFORMATION
ENG

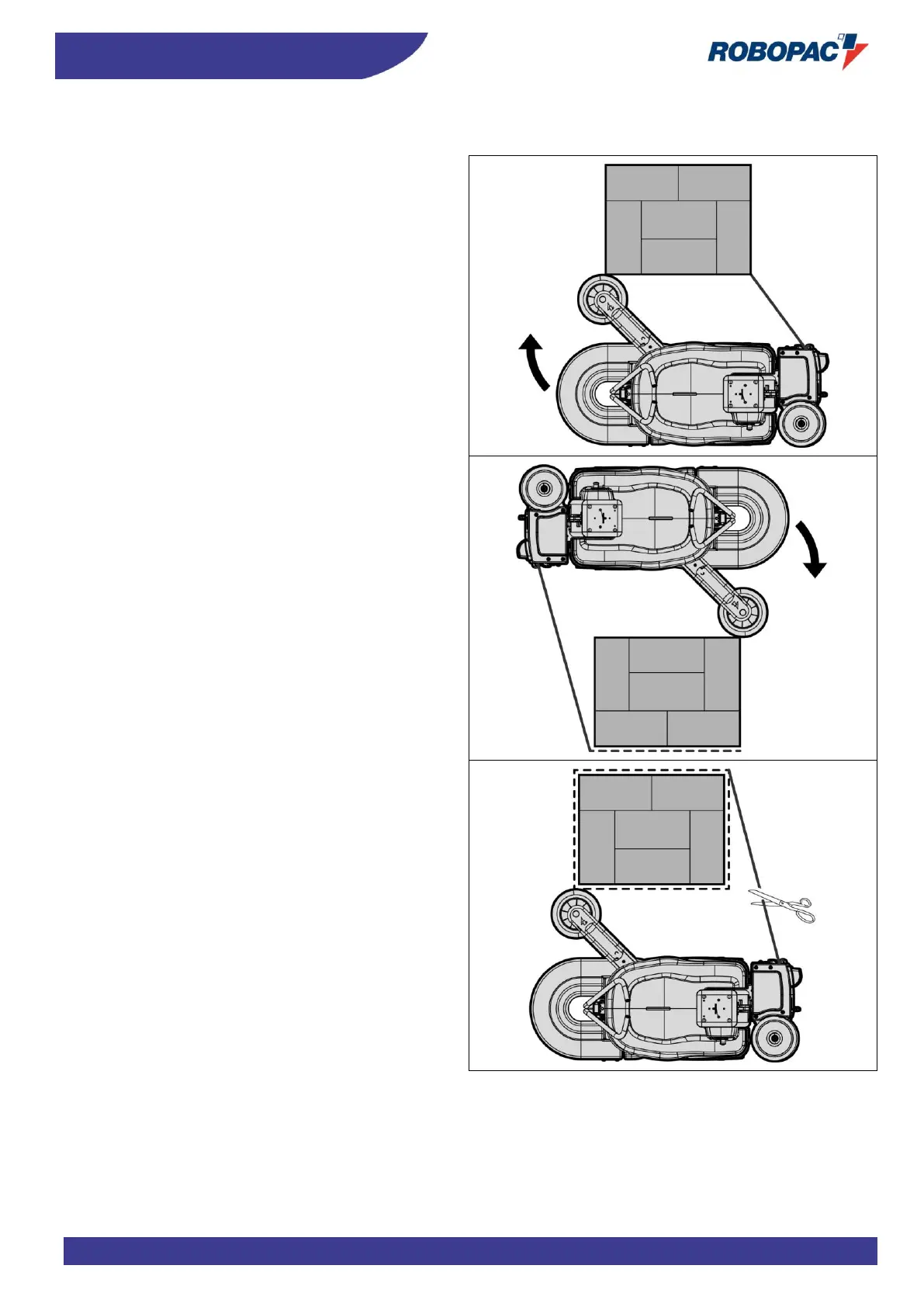

3.2. DESCRIPTION OF OPERATING CYCLE AND WRAPPING MODES
3.2.1. DESCRIPTION OF THE OPERATION CYCLE
Phase 1
The operator approaches the machine until the feeler
wheel is in contact with the pallet, then ties the end of the
film to the pallet and starts the wrapping cycle.
Phase 2
The machine turns clockwise around the pallet, while the
reel carriage lifts and unwinds the film according to the
set parameters.
Phase 3
Upon completion of the wrapping phase, the machine
stops.
Cut the film (manual or automatic mode) and then start it
to wrap the next pallet.
