4.4.2. INSTALLATION (WITH HORIZONTAL COLUMN)
Proceed as follows.

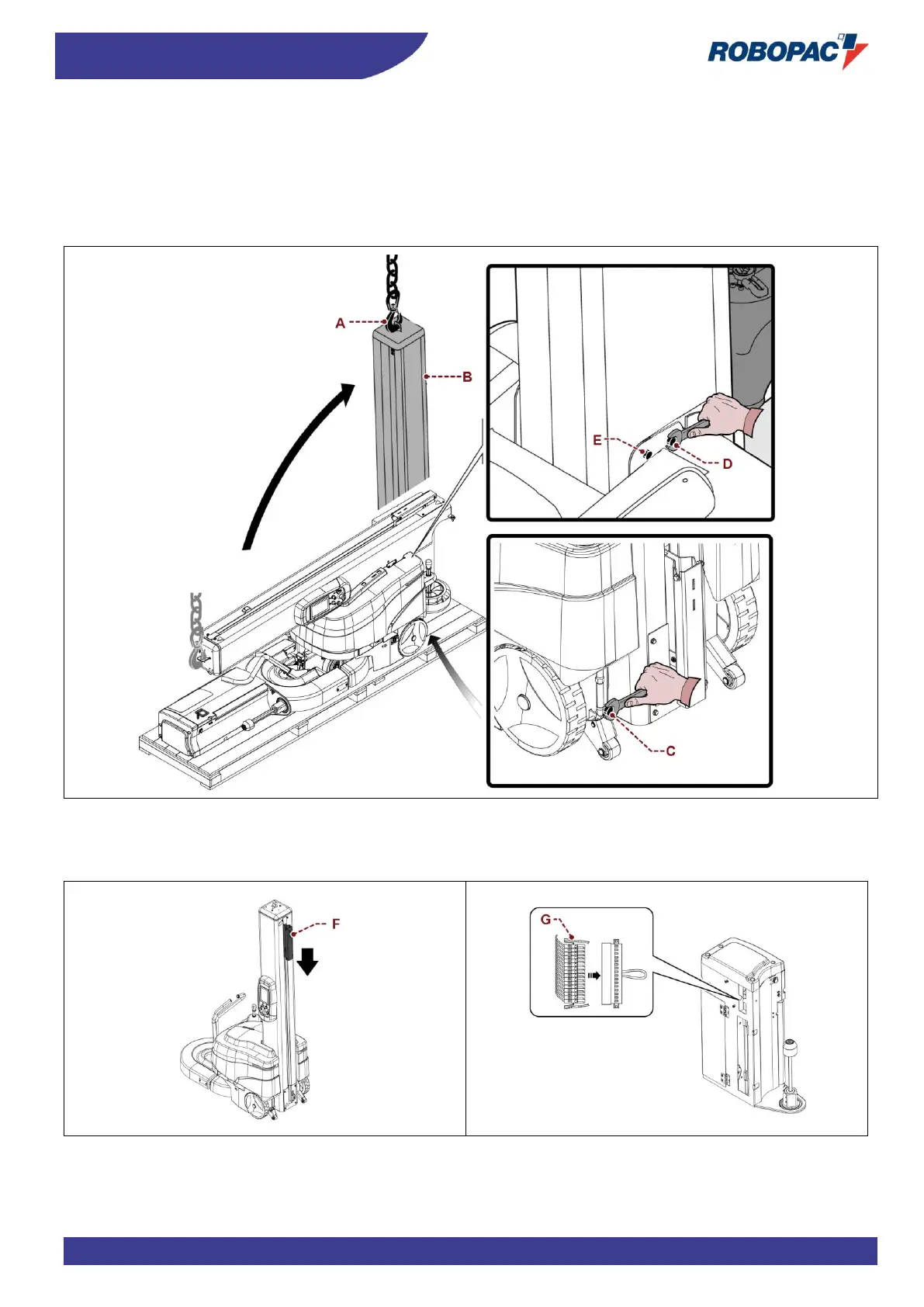

1. Hook the lifting device to the eyebolt (A) and lift the column (B).
2. Tighten the fastening screws (C-D).
3. Tighten the screws (E) fastening the hinge.
4. Disengage the lifting device.
5. Turn on the machine, press the reset button and, using the manual movements, lower the carriage guide (F) to
the useful height.
6. Disconnect the terminal (G) from the carriage guide (F).
