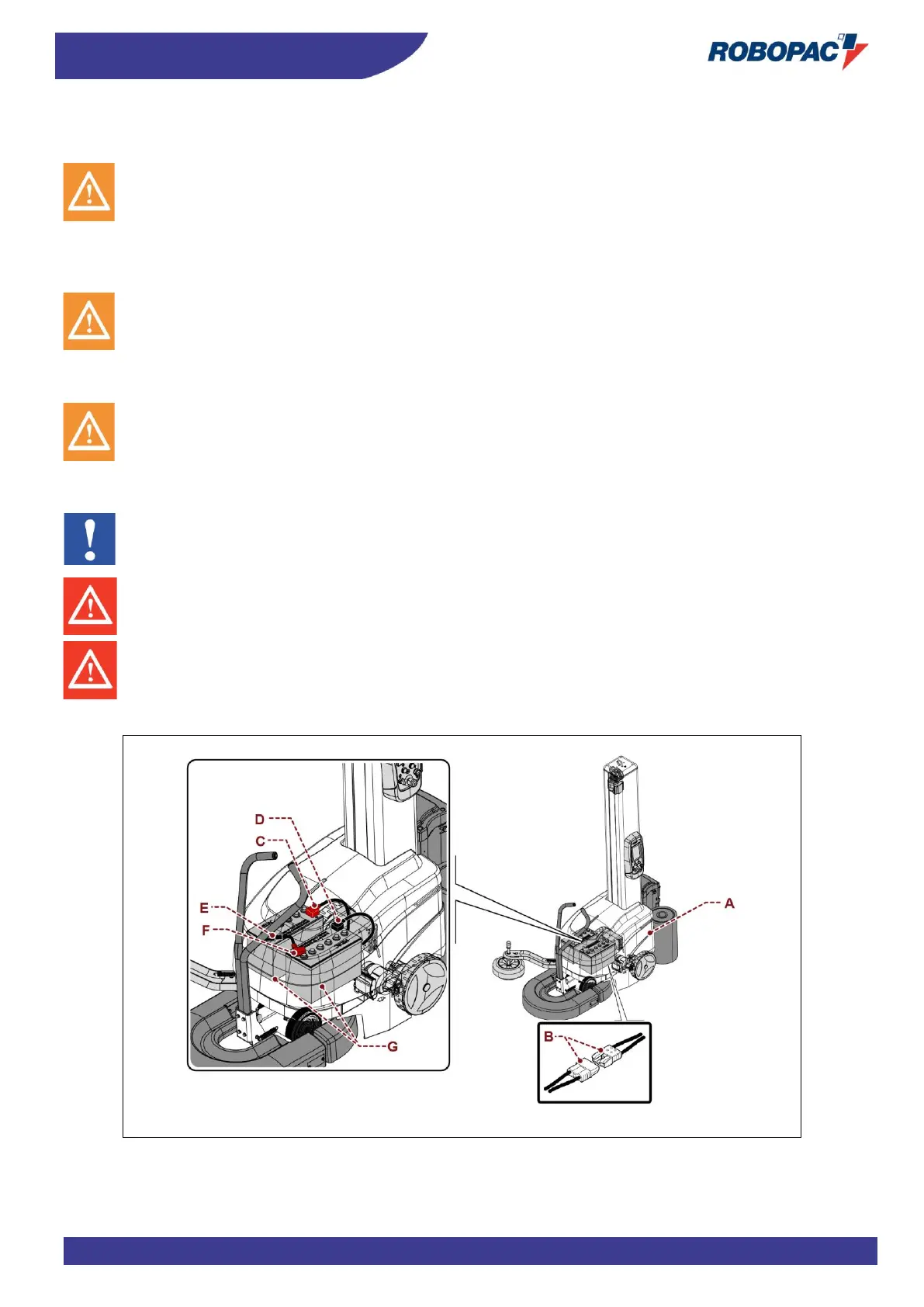

9.2. BATTERY REPLACEMENT
Proceed as indicated.
Caution - warning
The main fuse of the machine is built into the battery cables, use only original cables.
1. Lift the battery casing (A).
2. Remove the connector (B) from the plug.
3. Disconnect the terminals (C-D-E-F).
Caution - warning
First disconnect the negative terminal (−).
4. Extract the batteries (G) and replace them.
5. Reconnect the terminals (C-D-E-F).
Caution - warning
Respect the polarities when connecting the terminals.
Grease the positive terminal (✚) and connect it first.
6. Engage the connector (B) to the plug.
7. Lower the casing (A).
Important
Do not dispose of used batteries into the environment.
Dispose of them in compliance with current regulations (See attached documentation).
Danger - warning
Warning: heavy batteries.
Their removal requires two operators or a suitable lifting means.
Danger - warning
Warning: risk of crashing hands during the removal or feet in case of fall to the ground.
Wear appropriate PPE (protective gloves and shoes).
