Robopac ROBOT S7 - 3.6. TECHNICAL SPECIFICATIONS; 3.6.1. MACHINE AND PALLET DIMENSIONS

34
TECHNICAL INFORMATION
ENG
3.6. TECHNICAL SPECIFICATIONS
3.6.1. MACHINE AND PALLET DIMENSIONS

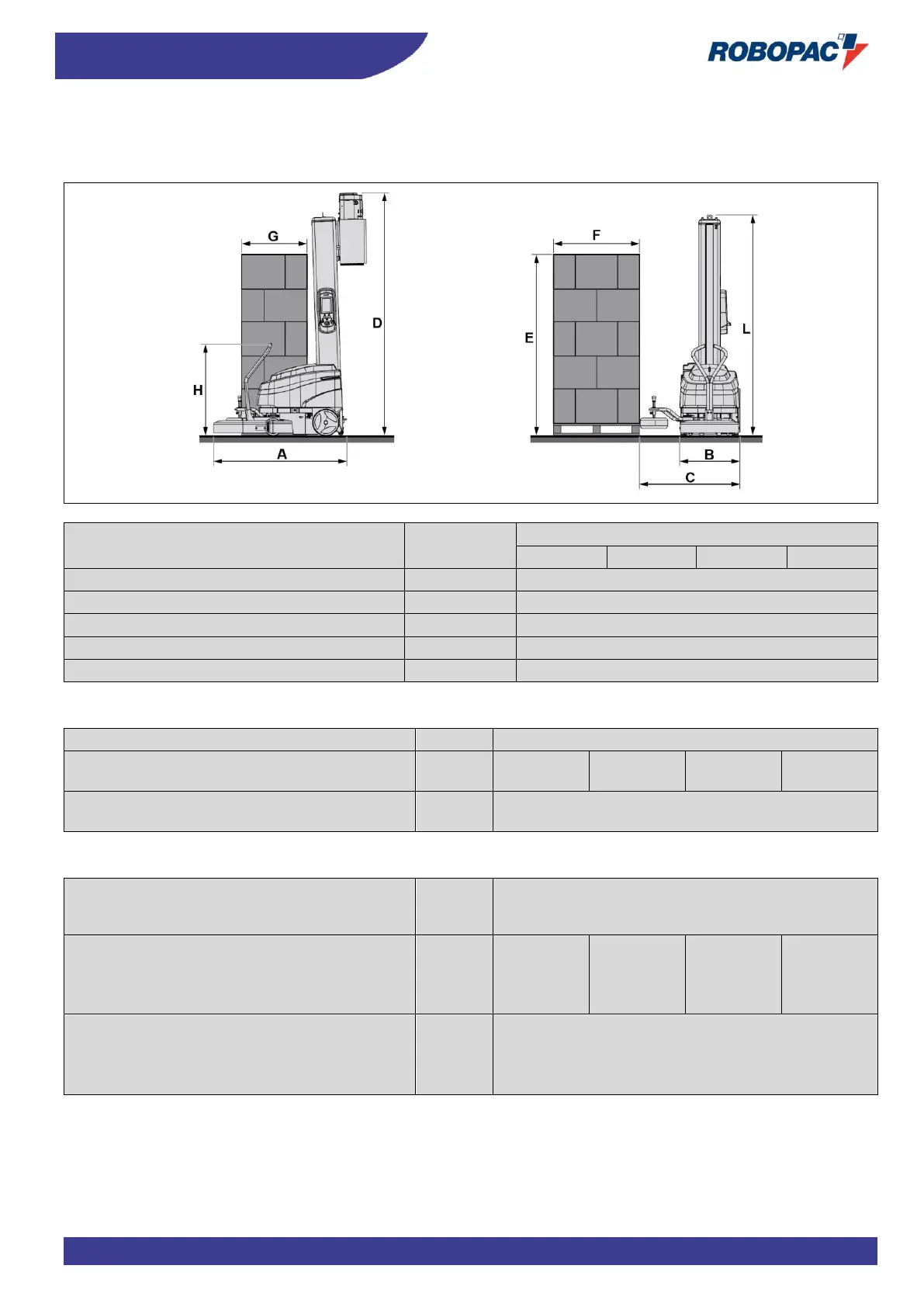

The illustration and the table include the machine dimensional specifications and technical data.
Description
Unit of
measurement
Machine model
FRD
FR
P3GS
PVS
A - Machine total length
mm
1767
B - Machine width
mm
686
C - Machine width with open feeler
mm
1141
H - Rudder height
mm
1048
FxG - Pallet dimensions
mm
≥ 600
Standard version
E - Pallet height
mm
2200
D - Machine maximum height
(E) max =
mm
2622
2588
2657
2657
L - Sliding column maximum height
(E) max =
mm
2540
Optional version
E - Pallet height
mm
mm
mm
2400
2800
3100
D - Machine maximum height
(E) max =
(E) max =
(E) max =
mm
mm
mm
2822
3222
-
2788
3188
-
2857
3257
3457
2857
3257
3457
L - Sliding column maximum height
(E) max =
(E) max =
(E) max =
mm
mm
mm
2740
3140
3340
