4.4.3. INSTALLATION OF FEELER AND RUDDER
Proceed as follows.

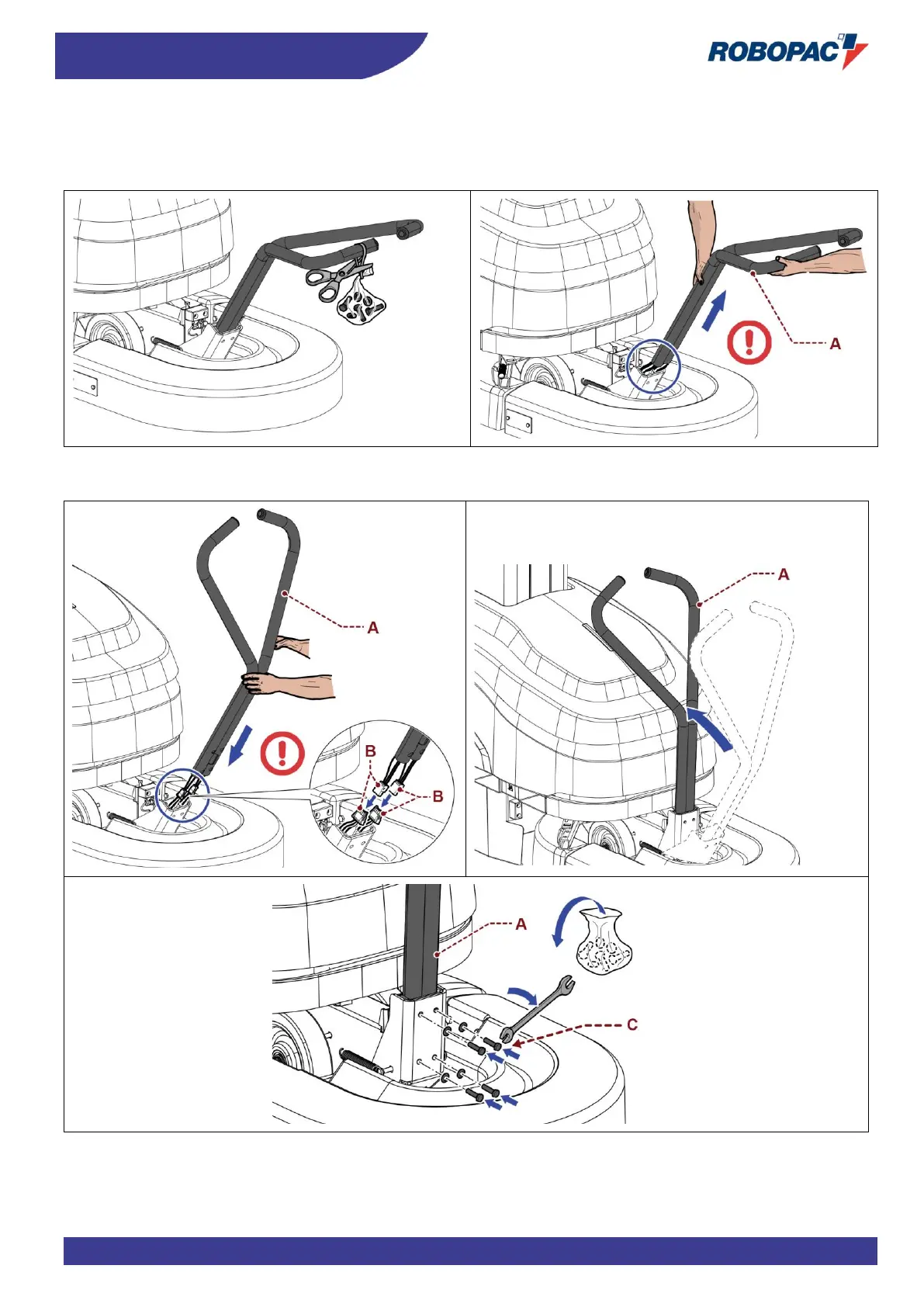

1. Lift the rudder (A) and extract it from the machine.
2. Turn the rudder (A), connect the connectors (B) and insert it into the machine's support.
3. Lift the rudder (A) and fasten it with the screws (C).
