64
INFORMATION ABOUT THE USE
ENG

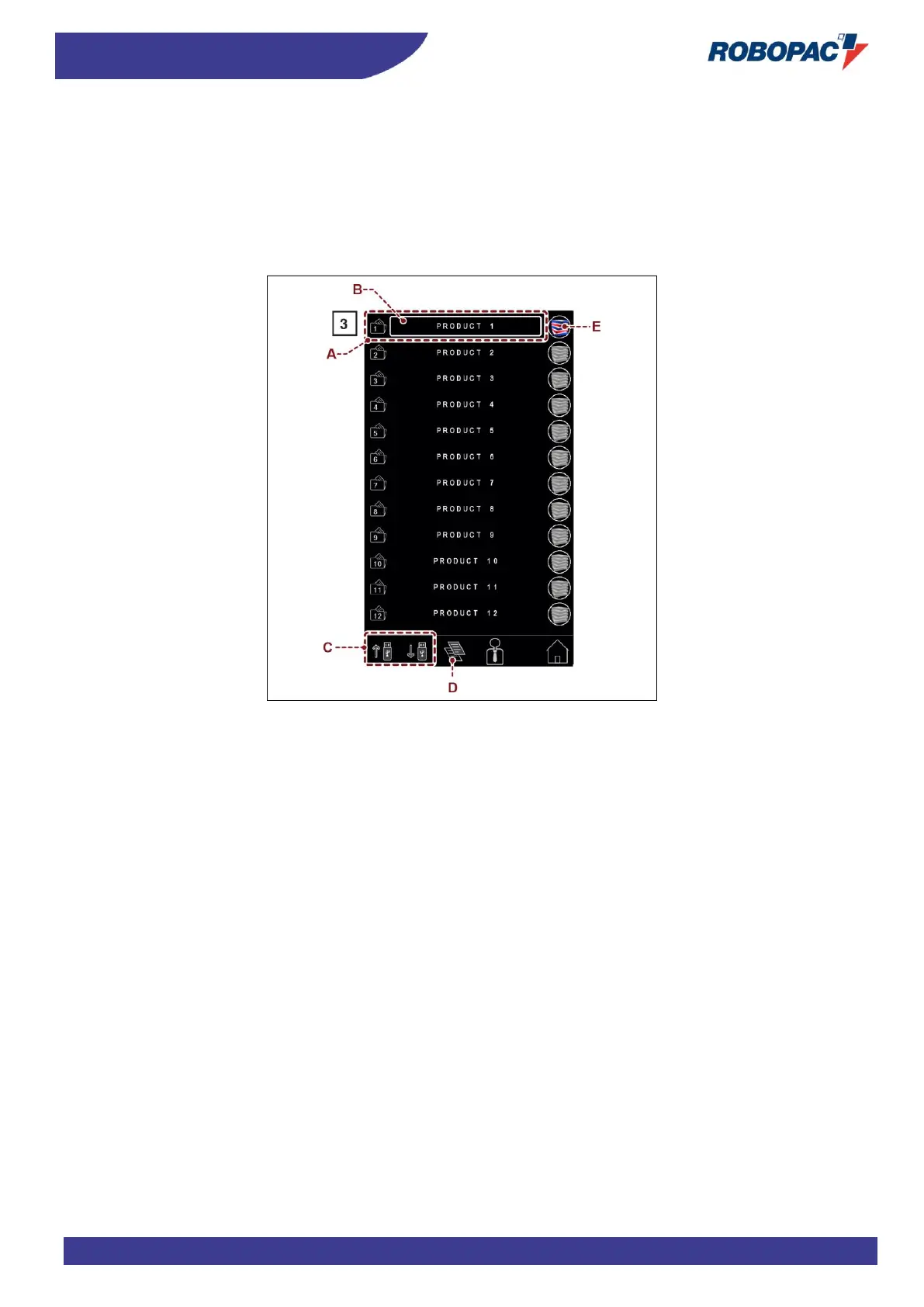

6.6. “RECIPES” PAGE
The page displays the controls to activate the concerned recipe.
A) Buttons: they are used to activate the concerned recipe.
B) Recipe name: by pressing it, you can change the name of the recipe.
C) Buttons: if a USB key is plugged in, these are used to import or export recipe data.
D) Button: press it to access the "copy recipes" page.
E) Button: it is used to enable/disable the “multilevel control” for each individual recipe.
