Robopac ROBOT S7 - 4.4.4. UPPER COVER INSTALLATION

ENG
INFORMATION ON HANDLING AND INSTALLATION
45
4.4.4. UPPER COVER INSTALLATION
Proceed as follows.

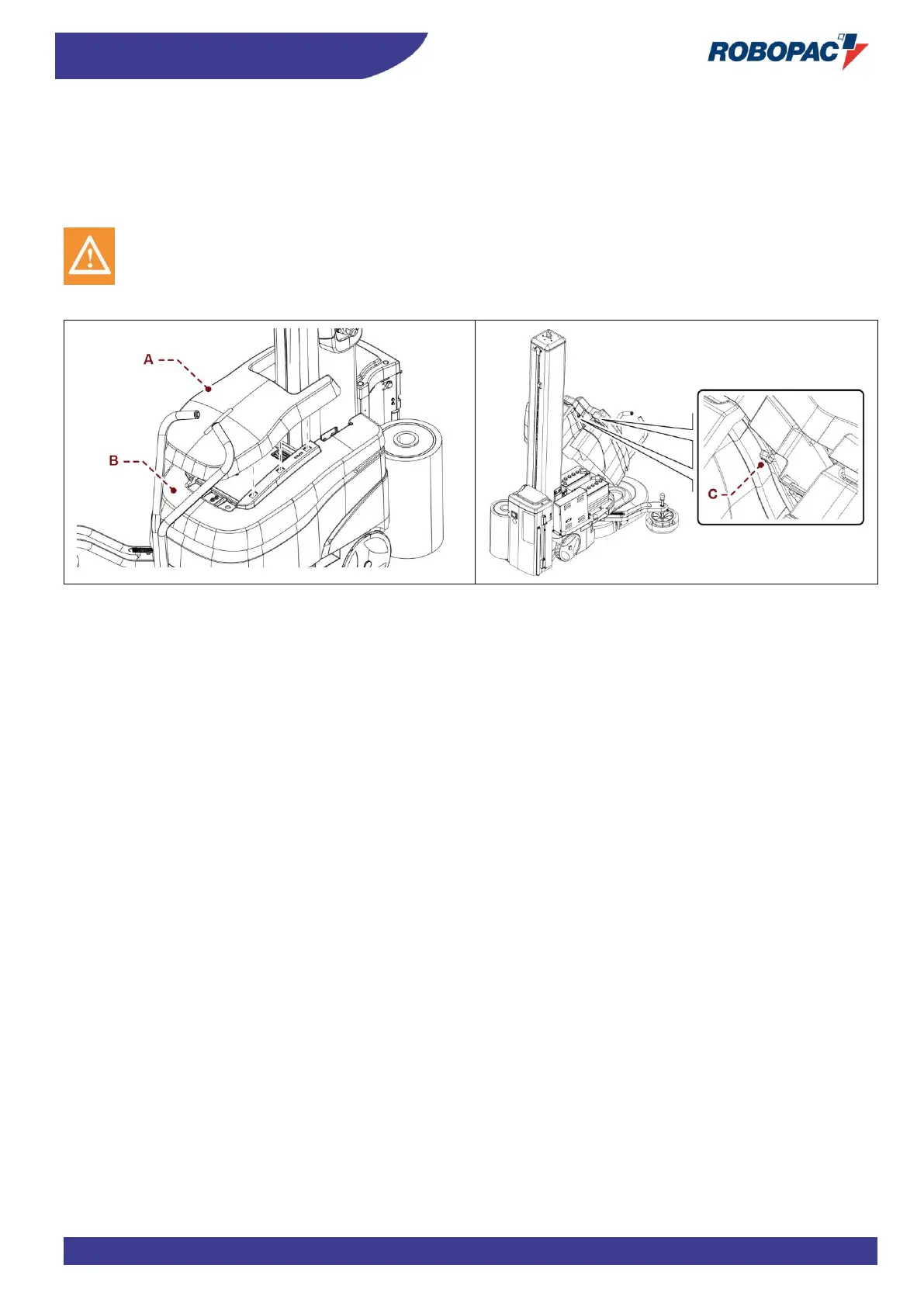

1. Take the upper cover (A).
2. Put the cover on the casing (B) and connect the connector.
3. Place it on top of the casing and slide it towards the sliding shaft until engaging the casing tabs.
Caution - warning
Make sure that the tabs are clicked in because, when opening the entire casing, if the cover is not secured
there is a danger of it falling off.
4. Open the casing and tighten the two safety screws (C).
