4.4. INSTALLATION OF DISASSEMBLED PARTS
4.4.1. INSTALLATION (WITH TILTED COLUMN)
Proceed as follows.

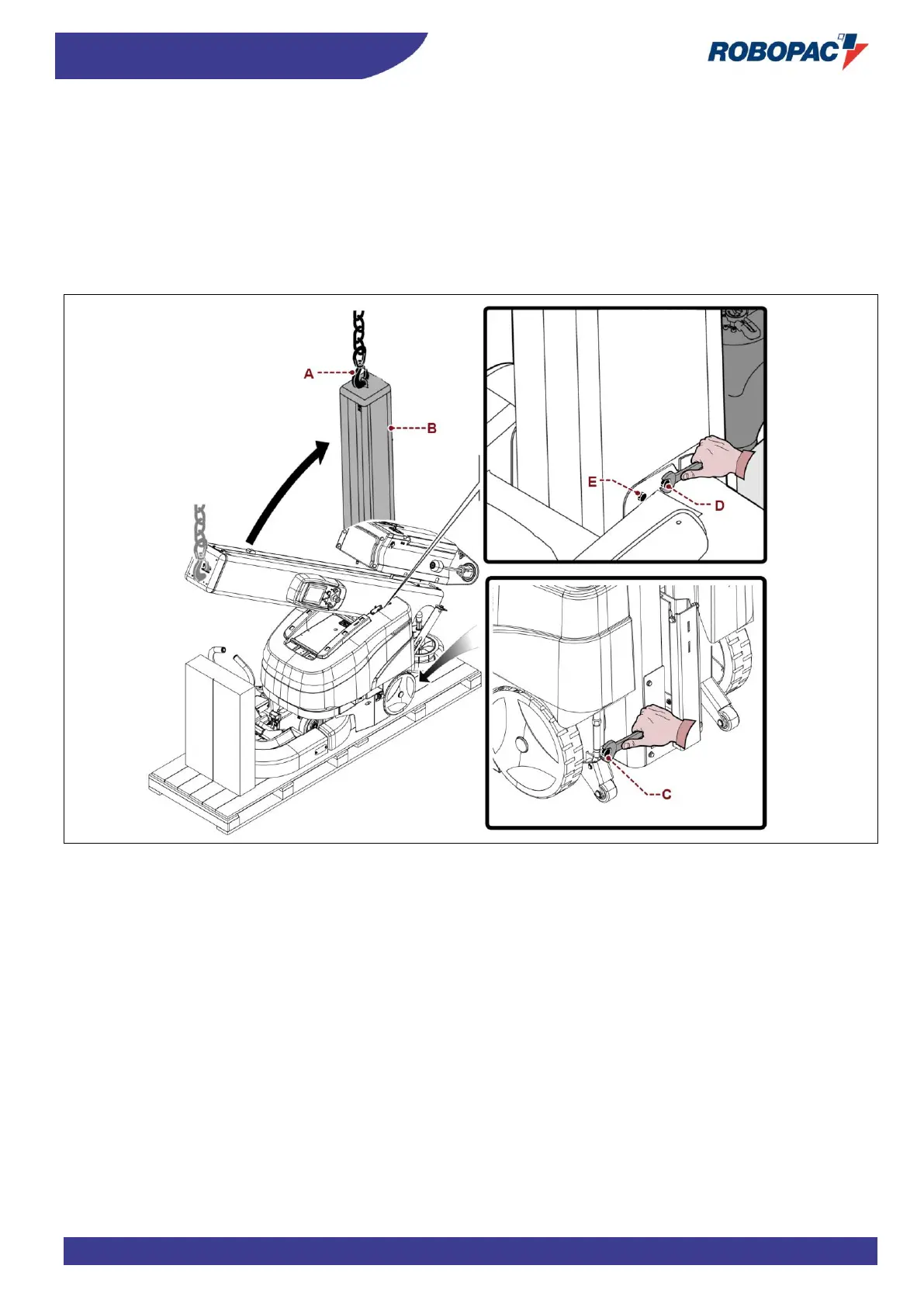

1. Hook the lifting device to the eyebolt (A) to keep the column in the correct position.
2. Lift the column (B).
3. Tighten the fastening screws (C-D).
4. Tighten the screws (E) fastening the hinge.
5. Disengage the lifting device.
