INFORMATION ABOUT THE USE
ENG

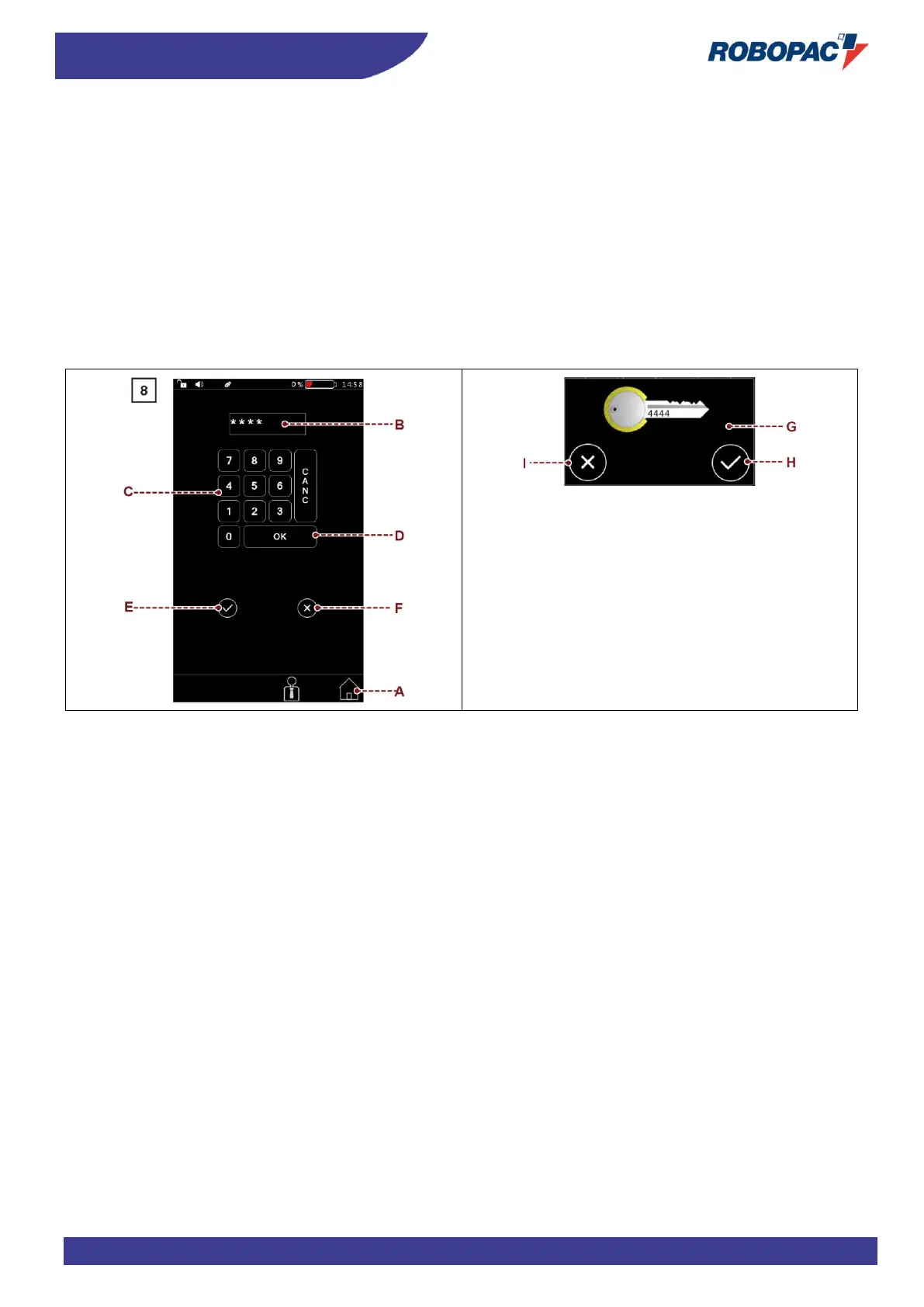

6.11. “PASSWORD CHANGE” SCREEN
The page displays the controls to change the password to access protected functions.
A) Button: it is used to display the “home” page.
B) Area: it displays the entered characters.
C) Numerical keyboard.
D) Button: it is used to confirm the entered values.
E) Button: it is used to save the password.
The activation of the control is signalled by the page (G) activation.
F) Button: it is used to reset the entered values.
G) Page: displays the new chosen password.
H) Button: it is used to save the password.
I) Button: it is used to reset the entered values.
