INFORMATION ON HANDLING AND INSTALLATION
ENG

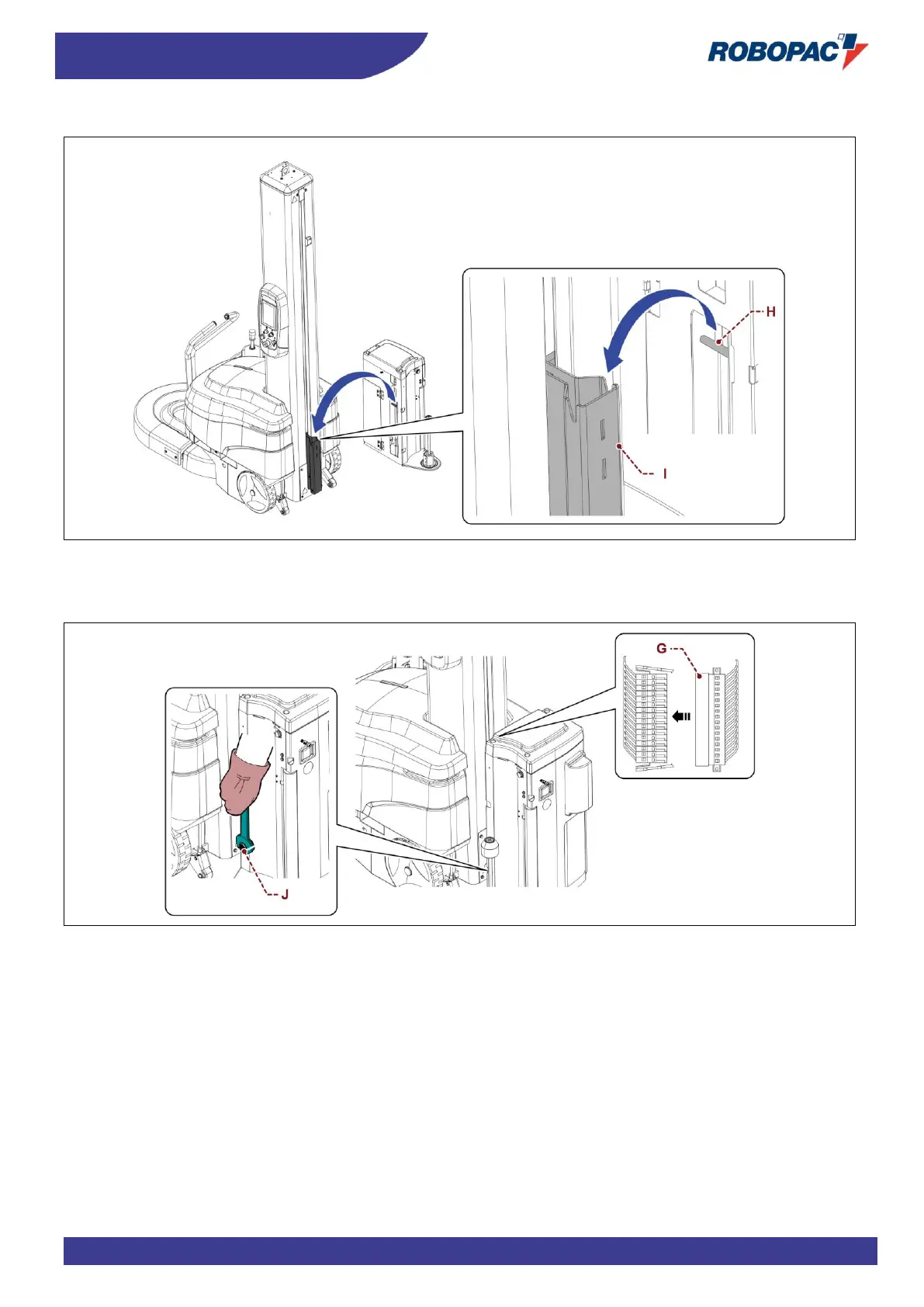

7. Position the film carriage by engaging the screw (H) in the groove (I).
8. Secure the carriage with the screw (J).
9. Connect the electric connector (G) to the film carriage terminal block.
10. Mount the guard (K).
