Robopac SPIROR HP - Page 73

SPIROR HP - DR

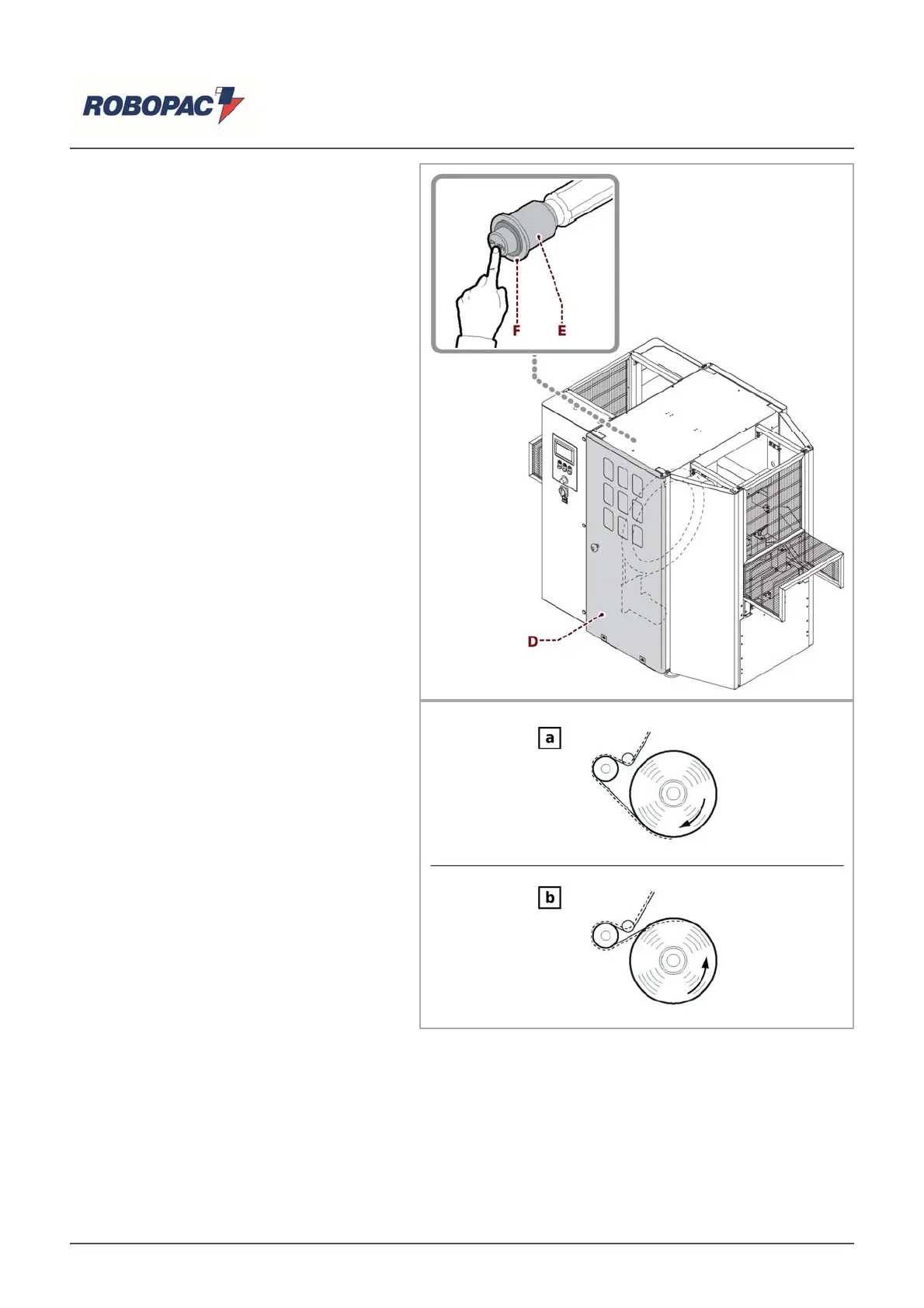

4. Open the door (D) to access the reel.
5. Press the button and take out flange (E).
6. Insert the reel on mandrill, put flange
back on and repress the button.
|
Important
The adhesive side of the film must
always face the product to be wrapped.
7. Block the flange by pressing ring (F).
8. Close the (D) door.
9. Press the Reset button.
10. The machine will automatically return to
the start cycle position.
11. Open hatch (D).
12. Unwind the film and insert it between the
rollers following the scheme in the figure
(the sketched area indicates the
adhesive side of the film).
13. If necessary, adjust film’s wrapping
tension (See "Film wrapping tension -
Adjustment").
a) Outside adhesive.
b) Inside adhesive.
English
73/95
