Roche Diagnostics
Operator’s Manual · Version 3.4 A-39
Cedex Bio analyzer 3Hardware
Covers and panels
Covers and panels

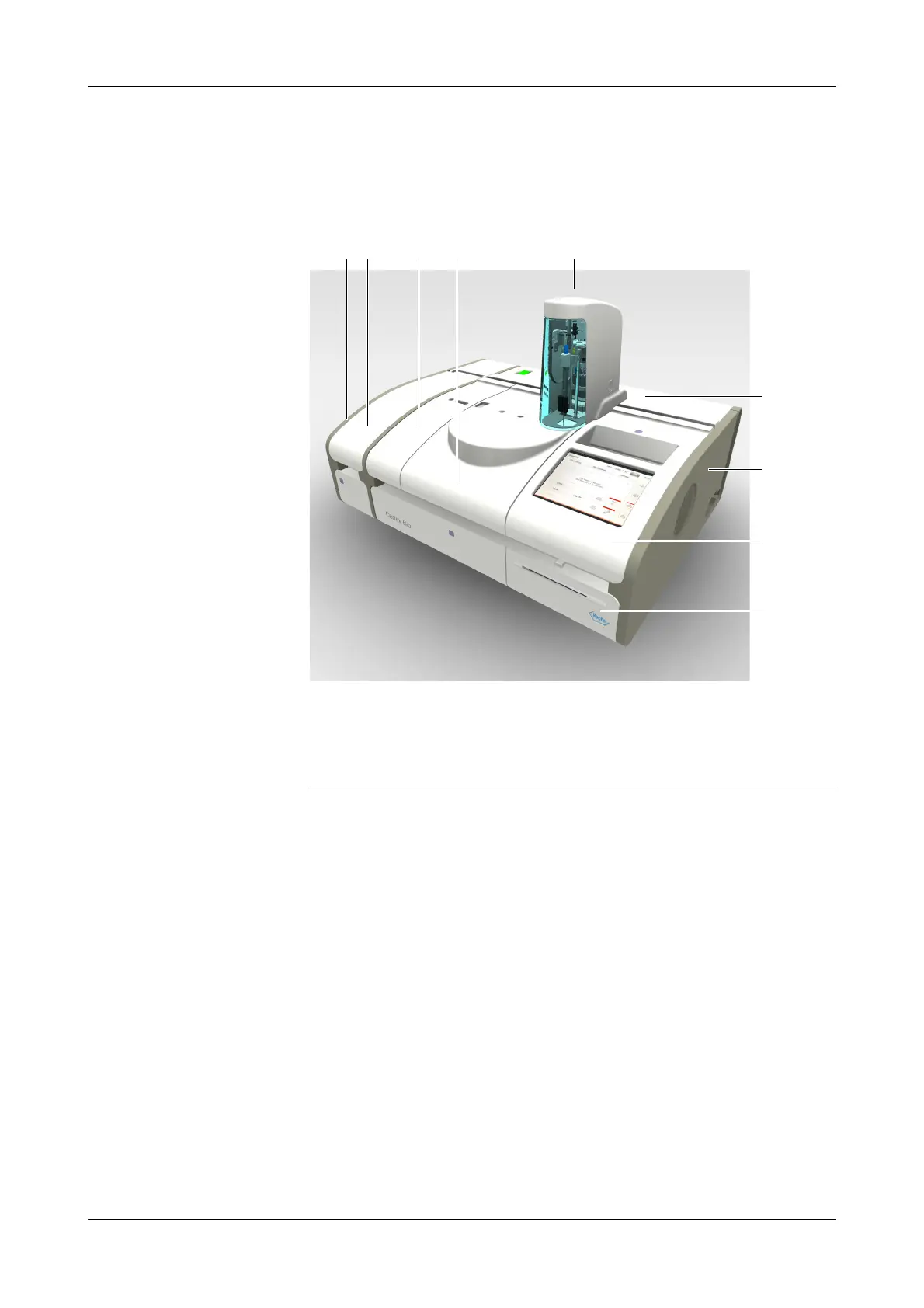

The following figure shows the removable panels and the lids that can be opened.
Transfer head cover Provides access to:
o Transfer mechanism
o Probe
Shut down the system and switch off the analyzer before you open this cover.
Left service flap Provides access to:
o Rinse station
o Tubing
o Internal waste tank
o Initialization plate
Handle as instructed during maintenance actions, or shut down the system and
switch off the analyzer before handling it.
A Left side panel
B ISE cover
C Left service flap
D Main cover
E Transfer head cover
F Rear service flap
G Right side panel
H Right service flap
I Printer panel
Figure A-8 The Cedex Bio analyzer
