Hardware overview
Rinse station
The probe is washed after each pipetting. It is lowered in the rinse station and then
cleaner is pumped through the probe to wash it in and outside. Next water is pumped
through the probe to flush away the cleaner.
The rinse station is connected by tubing to the internal waste tank.
External fluid connectors
The three external fluid containers must be properly connected before you switch on
the Cedex Bio analyzer.

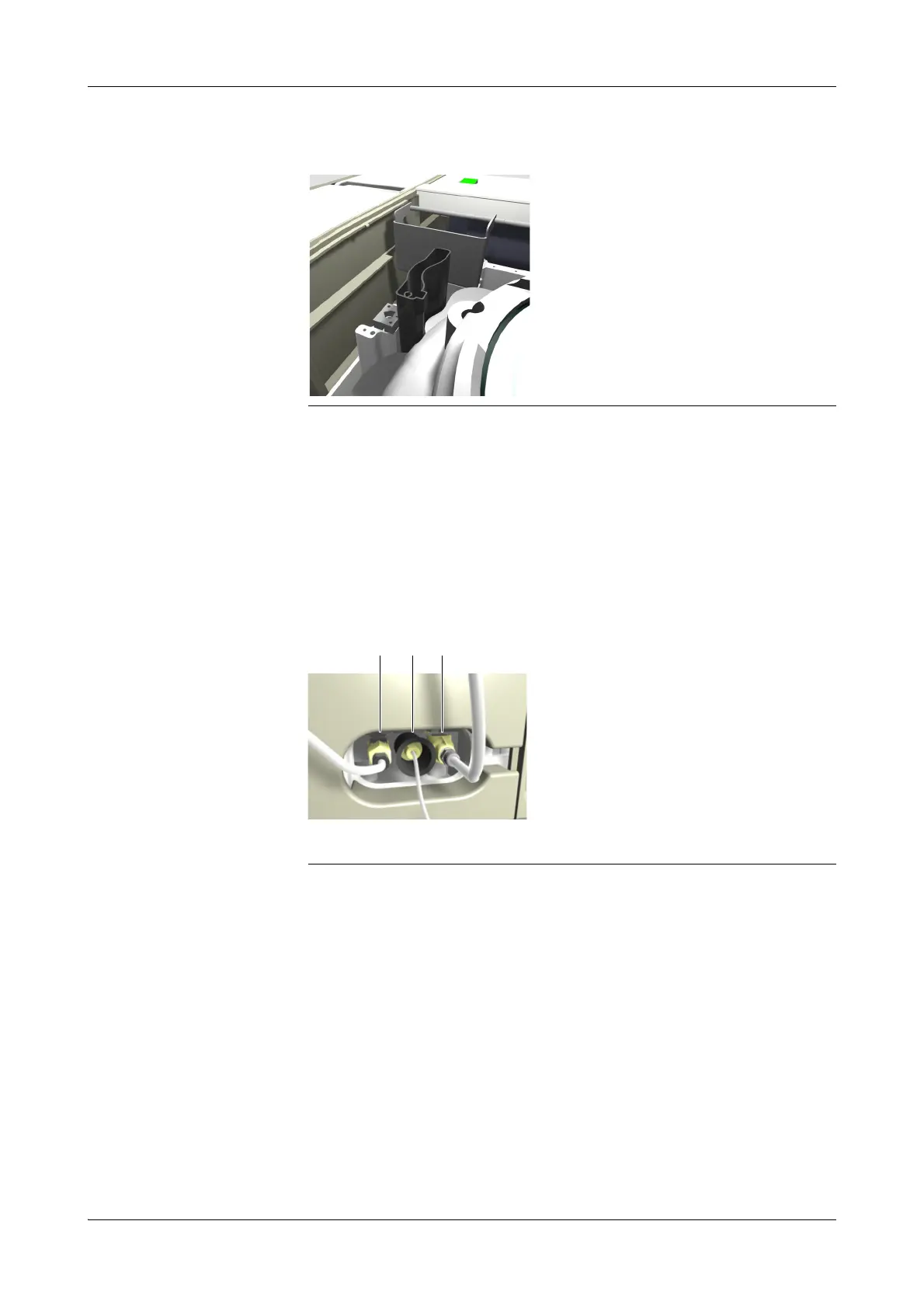

Figure A-14 Rinse station
A Water connector
B Cleaner connector with protective sleeve
C Waste connector
Figure A-15 External fluid connectors
