Roche Diagnostics
Operator’s Manual · Version 3.4 A-45
Cedex Bio analyzer 3Hardware
Hardware overview
Fluid system
The fluid system consists of all the valves, pumps, tubing, syringe, fluid sensors, water
and waste containers, the rinse station, and the probe. It transports all fluids around
the analyzer, including sample, reagent, calibrator, control, diluent, cleaner, system
water, and waste. The fluid system also delivers the correct amounts of fluids to the
cuvettes.

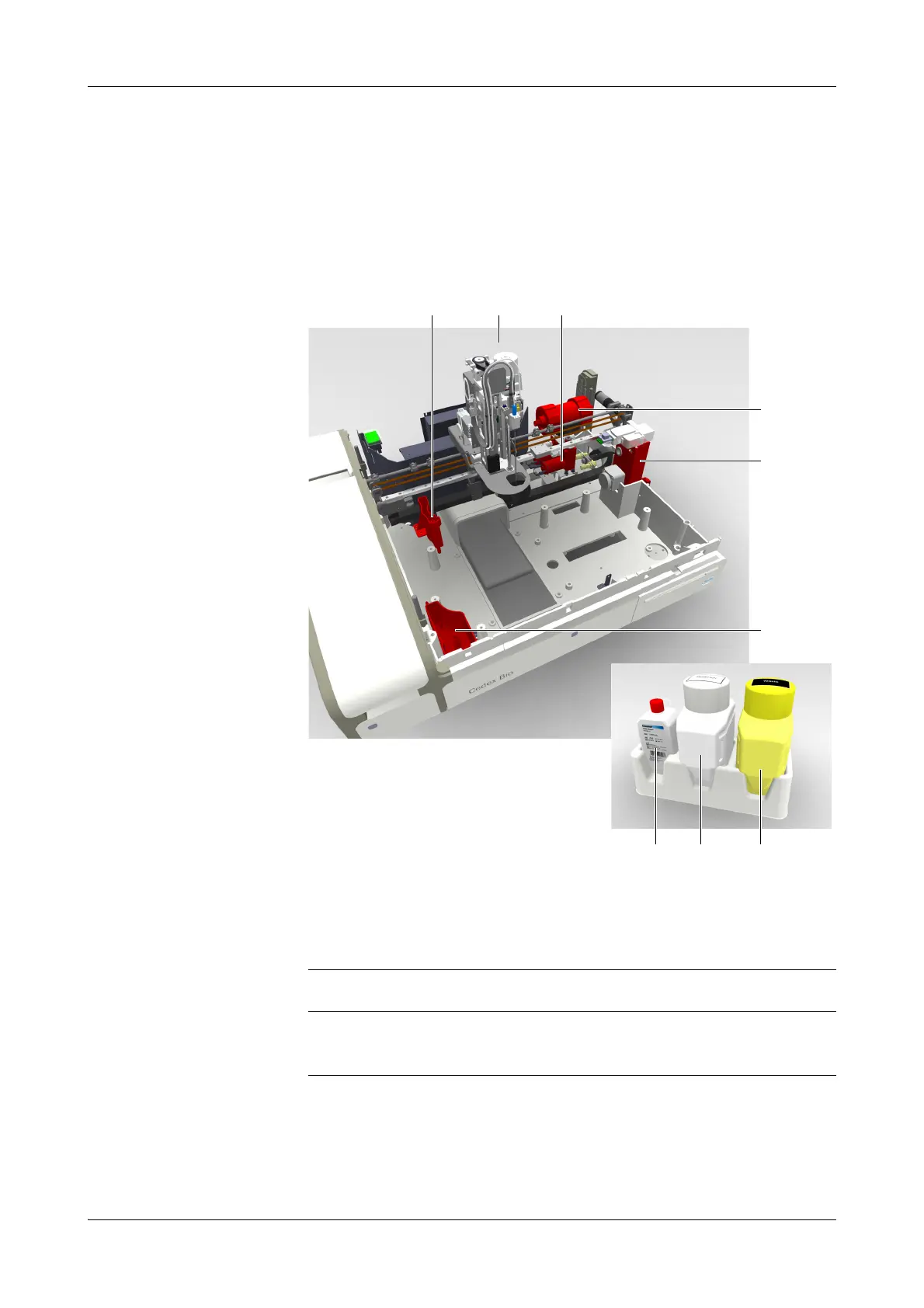

A Rinse station
B Transfer head (with probe)
C Pumps
D Degasser
E Syringe assembly
F Internal waste tank
G Cleaner bottle (red cap)
H Water container (white)
I Waste container (yellow)
Figure A-12 Fluid system
To prevent overflow of the internal waste tank when the system is in Standby status, the
waste is periodically pumped to the external waste container. (Condensation can build up
in the cooling assembly while the system is in Standby status.)
