Rockwell Automation Publication 5094-UM001E-EN-P - April 2020 101
Configure the Standard Module Chapter 6
Configure an Event in the Event Output Tags
To configure an event, you must change the Event Output tags for the affected
module via the Tag Monitor in the Logix Designer application. When you
change the tags, the change is reflected on the Module Properties dialog box.

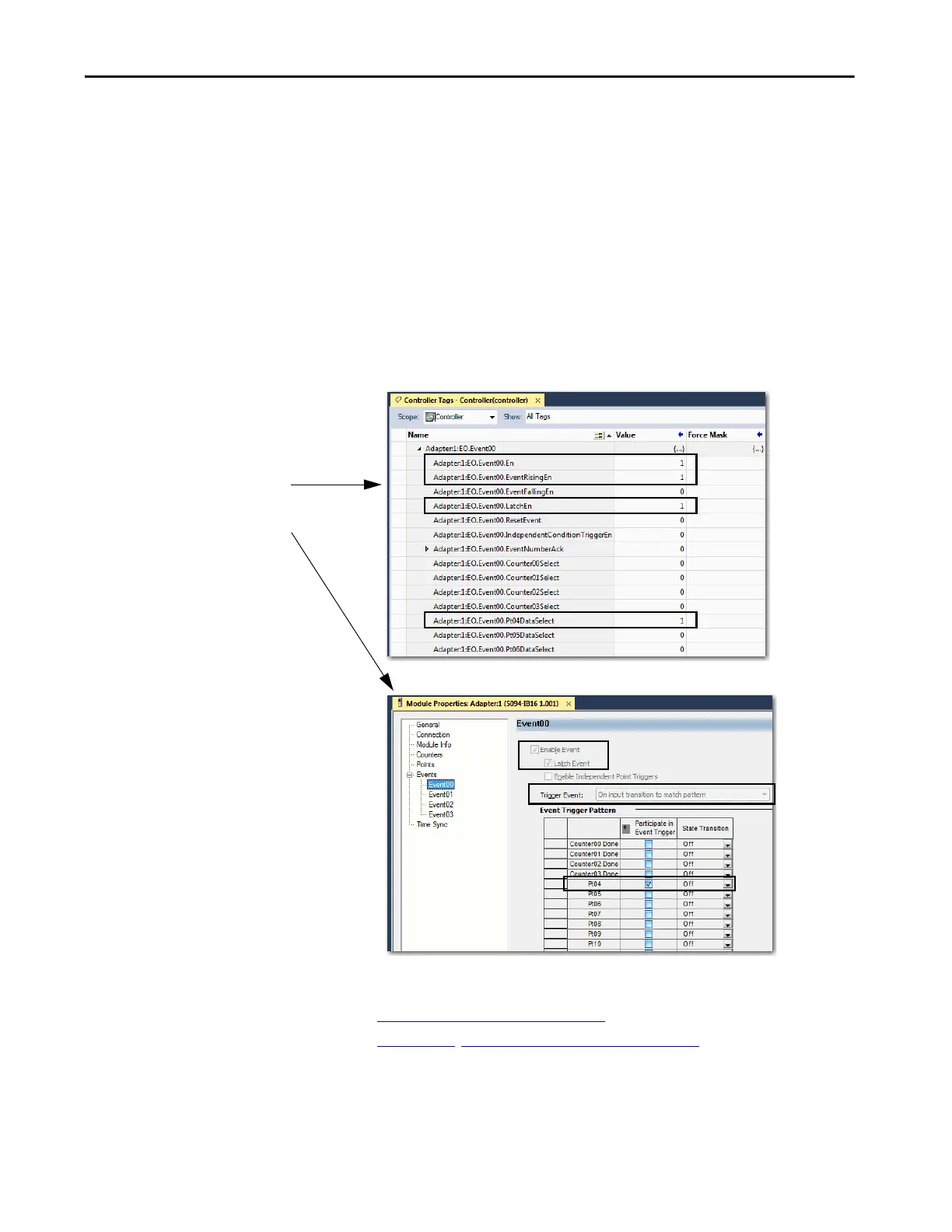

The following graphics show how tag values are reflected on the Module
Properties. The following conditions are shown:
•Event is enabled
• Point 4 is configured to trigger the event
•Event is latched
• Trigger Event is on input transition to match pattern
For more information on module tags, see the following:
• View the Module Tags
on page 106
• Appendix B, Module Tag Definitions on page 143
These changes in the Event
Output tags configure the event.
After the tags are changed, the
related parameters on the
Module Properties are updated
automatically.
