Application/Wiring Examples for Safety I/O Modules Appendix C

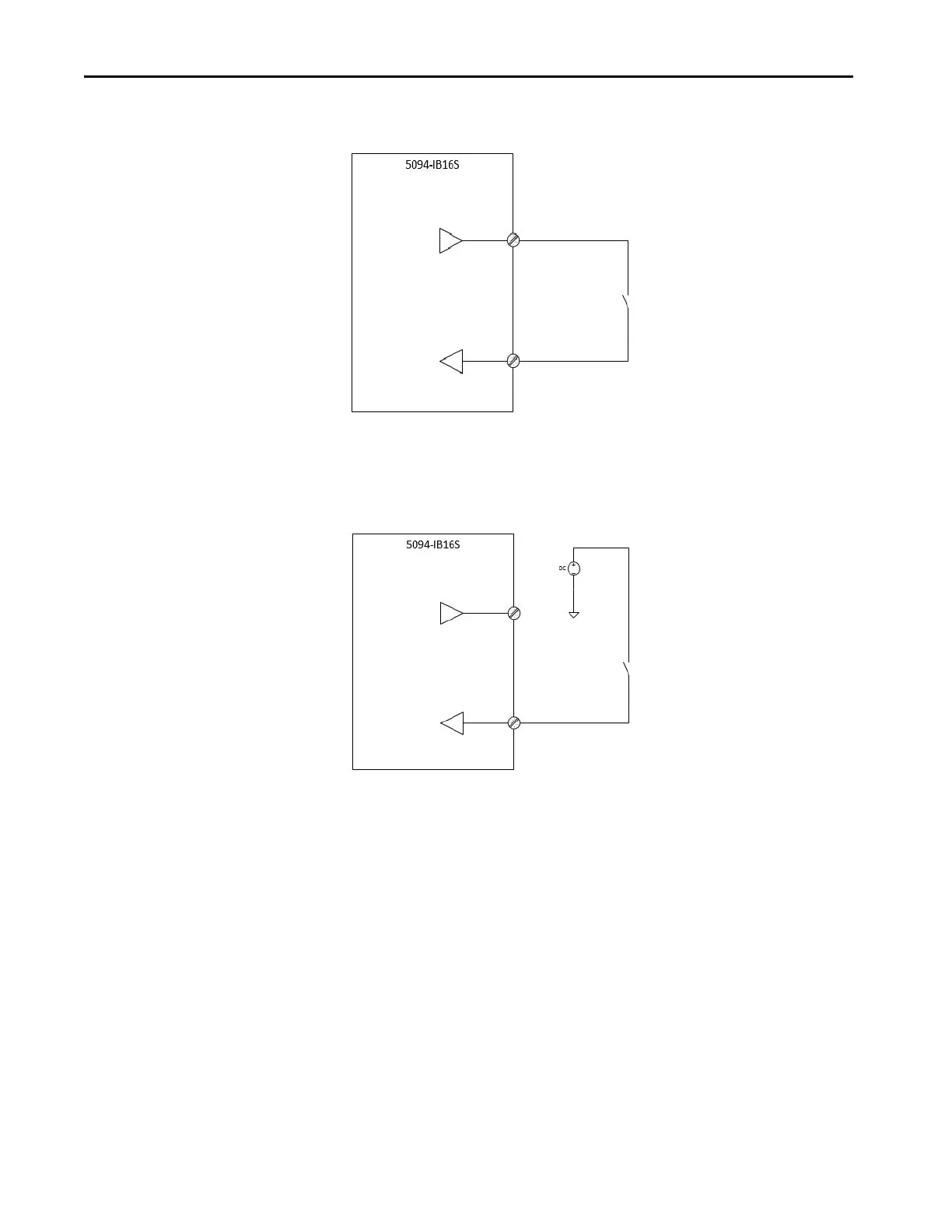

Figure 33 - 5094-IB16S Module - SIL 3, PLe, Cat. 4 in Safety Pulse Mode or Safety Mode
Figure 34 - 5094-IB16S Module - SIL 3, PLe, Cat. 4 in Safety Mode
SIL level and Category: SIL 3, PLe, Cat. 4
Fault Exclusion: External Wiring fault
Other: Use SIL 3/CAT 4/PLe qualified sensor.
Point Mode: Safety Pulse mode, Safety mode
SI_n(n = 0...15)
TO_n(n = 0...7)
TO_n configured to Test Output with Pulse when using Safety
Pulse mode
TO_n configured to Power Supply when using Safety mode
TO_n
SI_n or SI_n+8
SIL level and Category: SIL 3, PLe, Cat. 4
Fault Exclusion: External Wiring fault
Other: Use SIL 3/CAT 4/PLe qualified sensor.
Point Mode: Safety mode
SI_n(n = 0...15)
TO_n(n = 0...7)
TO_n
SI_n or SI_n+8
