Serial Communications 8-5
1560D-UM051D-EN-P – February 2005
Remote I/O Examples Example #1 – SLC 500 Controller without Block Transfer
This example demonstrates discreet control of an SMC Dialog Plus™
controller from an SLC 500 logic controller. Additionally, the SLC controller
reads the Current Phase A from the SMC Dialog Plus controller via the
analog feedback word. Many of the selections shown are example-specific.
Some changes by the user may be necessary to apply the concepts of this
example to a specific application.

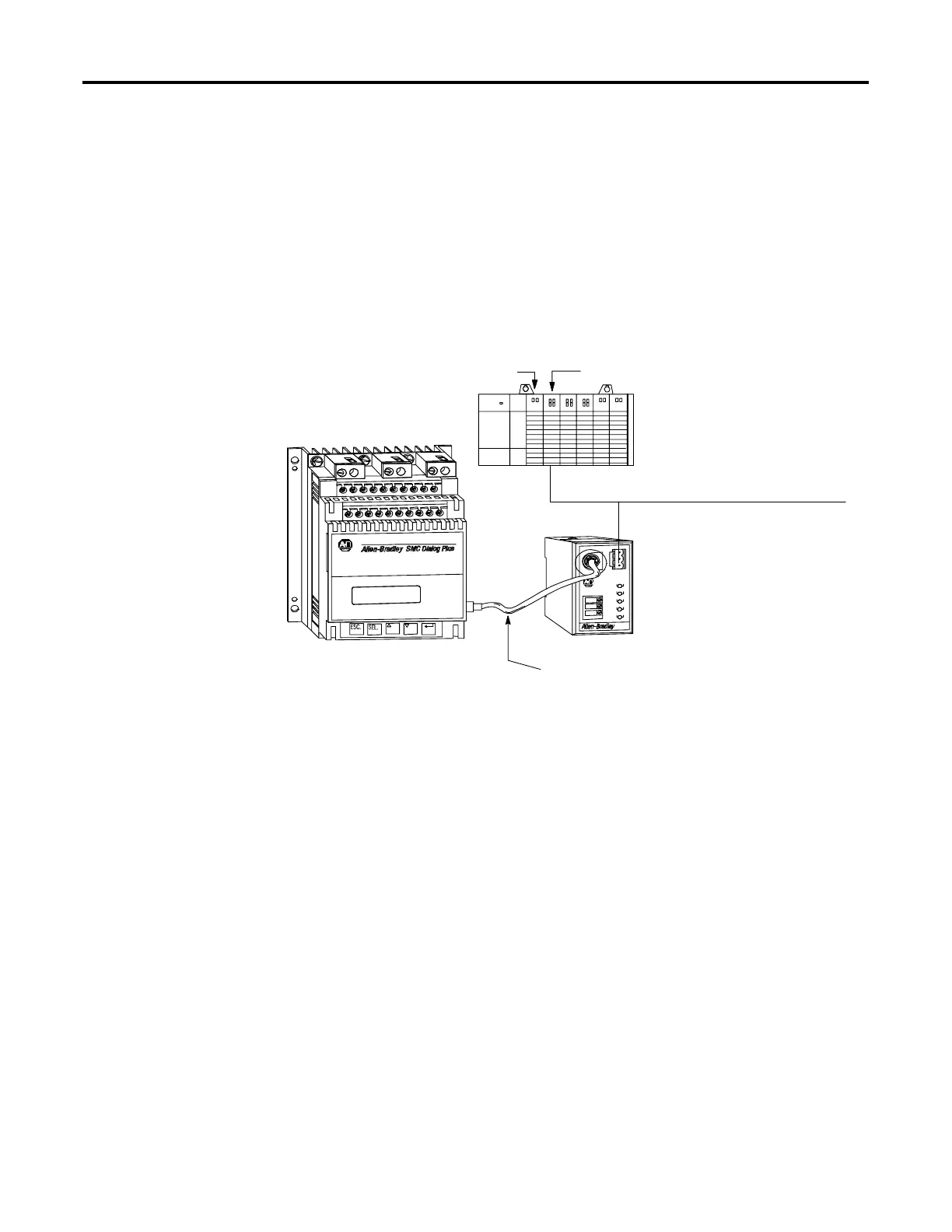

System Configuration
SLC 5/02 or higher 1747-SN Scanner
Remote I/O Link
SMC Dialog Plus
Controller
1203-GD1
Rem I/O
Rem I/O STS
Rem I/O ACT
Health
SCANbus STS
FAULT
2
SH
1
V+
V-
L1
1
L2
3
L3
5
11
21
12
22
13
23
14
24
15
25
16
26
17
27
18
28
19
29
20
30
G
Communication Module
Bulletin 1202 SCANport Cable
Note: It is critical that during the system design phase that each device
on the Remote I/O link is allocated a unique segment of the
SLC's I/O image table. This is accomplished by coordination of
the device's rack address, rack size and starting group address.
