Options
Overview The SMC Dialog Plus™ controller offers a variety of unique control options
that provide enhanced motor starting and stopping capabilities. (See
pages 1-12 to 1-15 for brief descriptions of each option.)
Note: Only one option module can reside in a controller. Contact
factory before substituting one option module for another.
Human Interface Module The control buttons available with the Bulletin 1201 human interface
modules are compatible with the SMC Dialog Plus controller's control
options. The following table details the function of each button with
respect to each option.
Notes: 1. Control logic must be enabled prior to initiating control
commands to the SMC Dialog Plus controller. Refer to
pages 2-14 to 2-17 for instructions.
2. The control terminals must be wired according to Figure
1.20 or 1.21 on page 1-25 or 1-26, depending on the control
module type.
3. The Bulletin 1201 HIM replaces the Bulletin 1203
Communication Module shown in Figures 1.20 and 1.21.

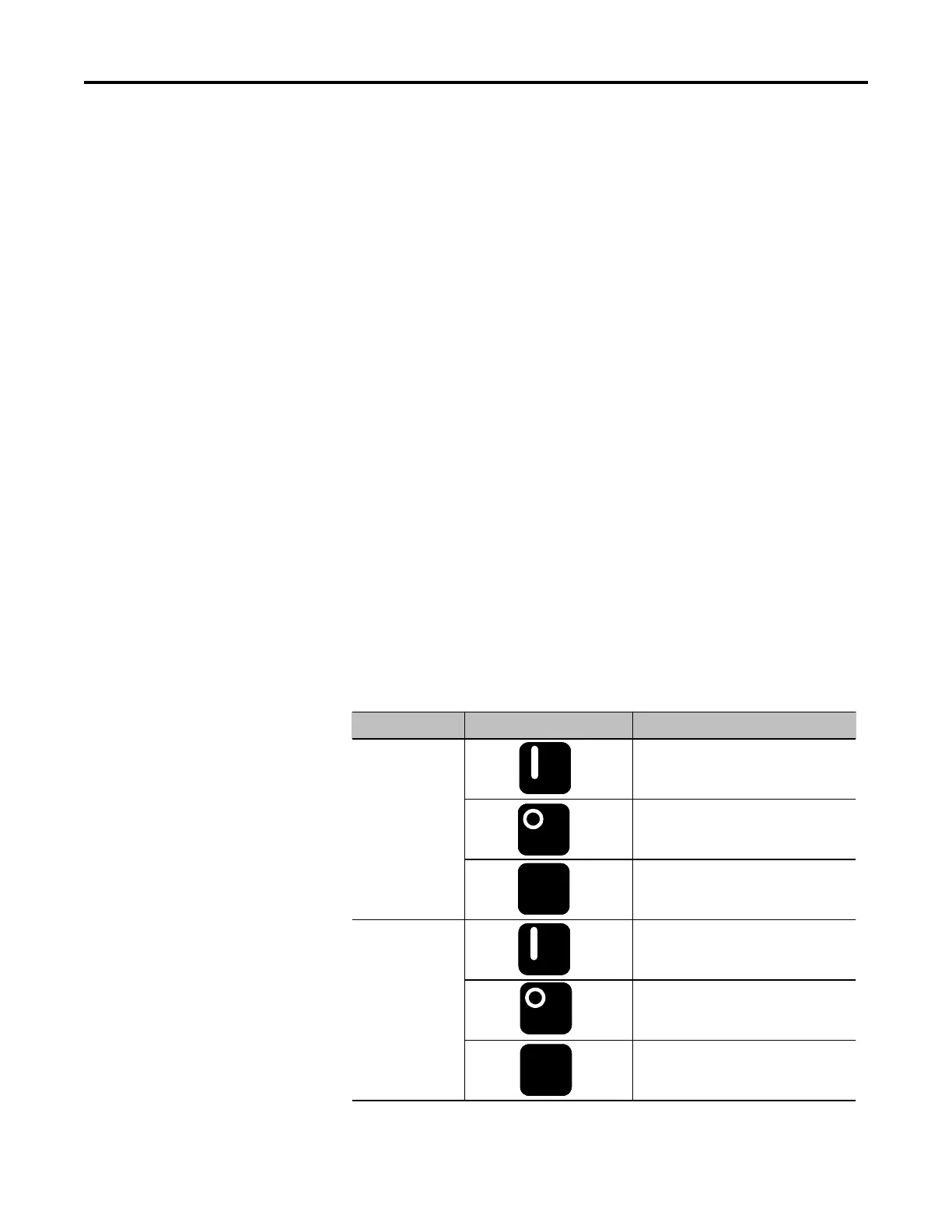

Option Action Operation
The green start button, when pressed,
will commence motor acceleration to full
speed.
Soft Stop The red stop button, when pressed, will
provide a coast stop.
The jog button, when pressed, will
initiate a soft stop maneuver.
The green start button, when pressed,
will commence motor acceleration to full
speed.
Pump Control The red stop button, when pressed, will
provide a coast stop.
The jog button, when pressed, will
initiate a pump stop maneuver.
JOG
JOG
Option Action Operation
The green start button, when pressed,
will commence motor acceleration to full
speed.
Soft Stop The red stop button, when pressed, will
provide a coast stop.
The jog button, when pressed, will
initiate a soft stop maneuver.
The green start button, when pressed,
will commence motor acceleration to full
speed.
Pump Control The red stop button, when pressed, will
provide a coast stop.
The jog button, when pressed, will
initiate a pump stop maneuver.
JOGJOG
JOGJOG
Chapter 7
1560D-UM051D-EN-P – February 2005
