Installation 2-17
1560D-UM051D-EN-P – February 2005
Series B Human Interface Modules

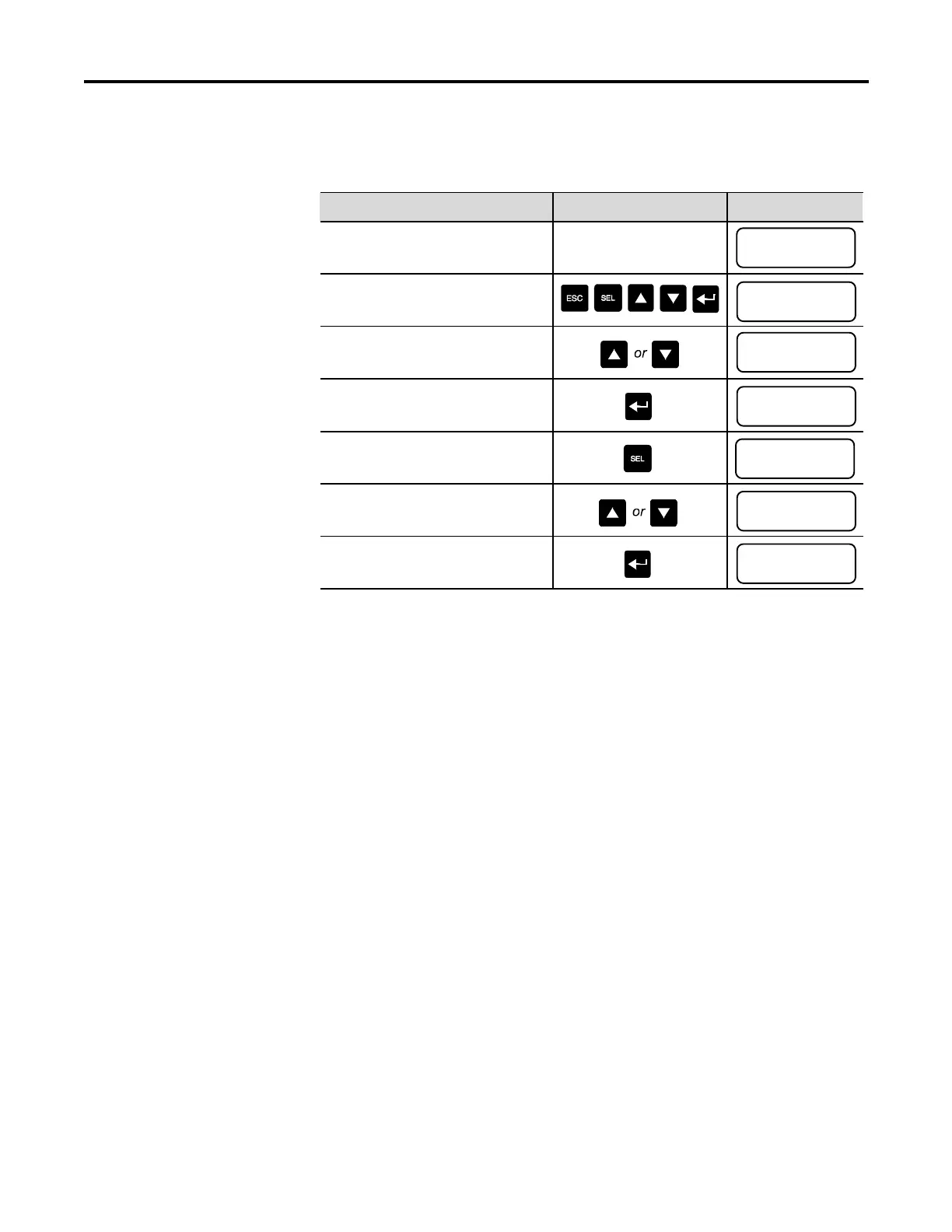

Description Action Display
——
STOPPED
0.0 AMPS
1. Press any key to access the Choose
Mode function.
CHOOSE MODE
_ _ _ _ _
2. Scroll with the Up/Down keys until the
Control Logic option is presented.
CHOOSE MODE
CONTROL STATUS
3. Press the Enter key to access the
Control Logic options.
CONTROL LOGIC
DISABLE
4. Press the Select key to access the
settings available.
CONTROL LOGIC
DISABLE
5. Use the Up/Down keys to obtain the
Enable option.
CONTROL LOGIC
ENABLE
6. Press the Enter key to accept.
CONTROL LOGIC
ENABLE
Note: If a human interface module is disconnected from the MV
Dialog Plus™ controller while Control Logic is enabled,
a "Comm Fault" will occur.
