1-16 Product Overview
1560D-UM051D-EN-P – February 2005
Control Options (cont.) SMB™ Smart Motor Braking Option (cont.)
Note: All braking current settings in the range of 1-100% will provide
100% braking current to the motor.
SMB Smart Motor Braking is not intended to be used as
an emergency stop. Such usage may result in severe
injury or death. Refer to the applicable standards for
emergency stop requirements. High brake current
settings can produce high torque transients. Use the
lowest setting that suits the application.
Slow Speed with Braking Option
The Slow Speed with Braking option provides a jog speed for process
setup and braking-to-stop at the end of the cycle.
Motor
Speed
100%
Start
Run
Slow
Speed
Braking
7% or 15%
Stop
Coast-to-rest
Time (seconds)
Motor
Speed
100%
Start
Run
Slow
Speed
Braking
7% or 15%
Stop
Coast-to-rest
Time (seconds)

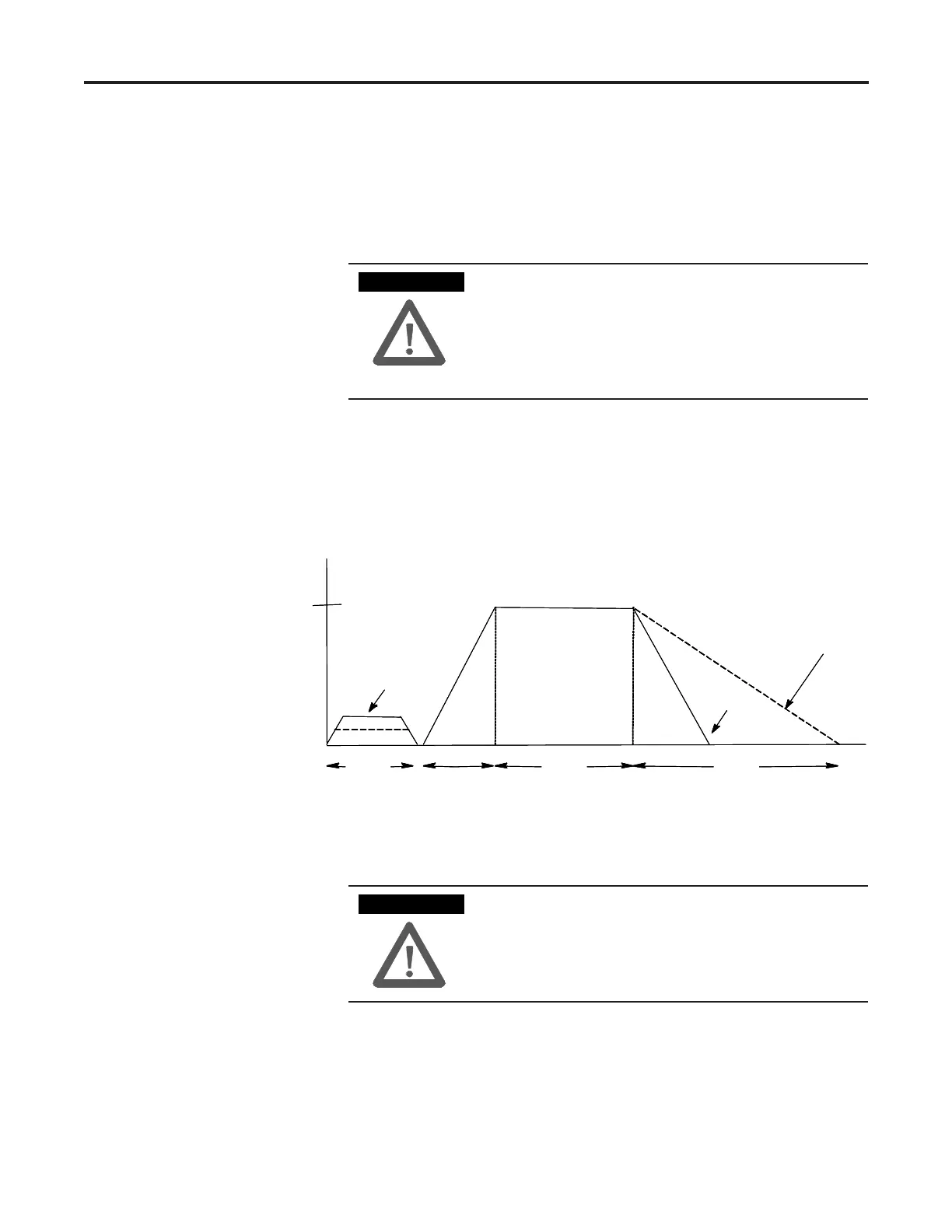

Figure 1.16 – Slow Speed with Braking Option
Slow Speed with Braking option is not intended to be
used as an emergency stop. Such usage may result in
severe injury or death. Refer to the applicable stand-
ards for emergency stop requirements.
A T T E N T I O NA T T E N T I O N
A T T E N T I O NA T T E N T I O N
