2-20 Installation
1560D-UM051D-EN-P – February 2005
Converter Modules The Bulletin 825 converter module provides three-phase current feedback
to the SMC Dialog Plus™ controller for metering and overload protection
during bypass operation. Cat. No. 825-MCM20 is to be used with current
transformers.
The current transformer ratio must be programmed in the calibration group
for proper current measurement scaling. See page 5-2 for instructions on
programming this parameter.

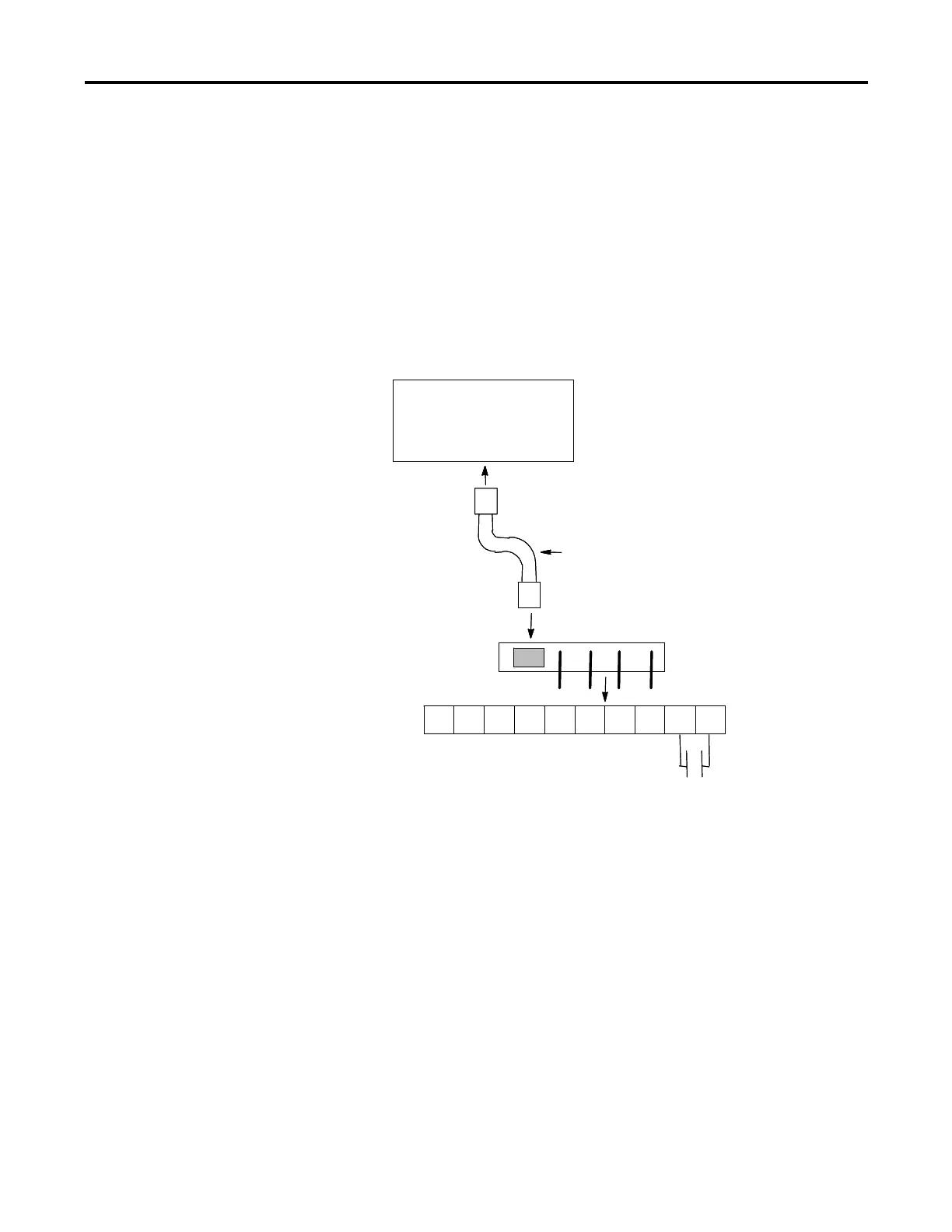

Figure 2.7 shows the connection between the controller and the module.
T1 T2 T3
L1 L2 L3
150-NFS
21 22 23 24 25 26 27 28 29 30
Converter
Module X
Cable (provided as
standard with the
converter module)
Fanning Strip
T1 T2 T3
L1 L2 L3
150-NFS
21 22 23 24 25 26 27 28 29 30
Converter
Module X
Cable (provided as
standard with the
converter module)
Fanning Strip
Figure 2.7 – Converter Module Connection Interface
X The converter module rating must be programmed in the calibration group for proper current measurement
scaling.
Y Cable length is three meters. Only the cable provided with the converter module is compatible with the
SMC Dialog Plus controller. Use of any other cable may result in faulty controller operation.
