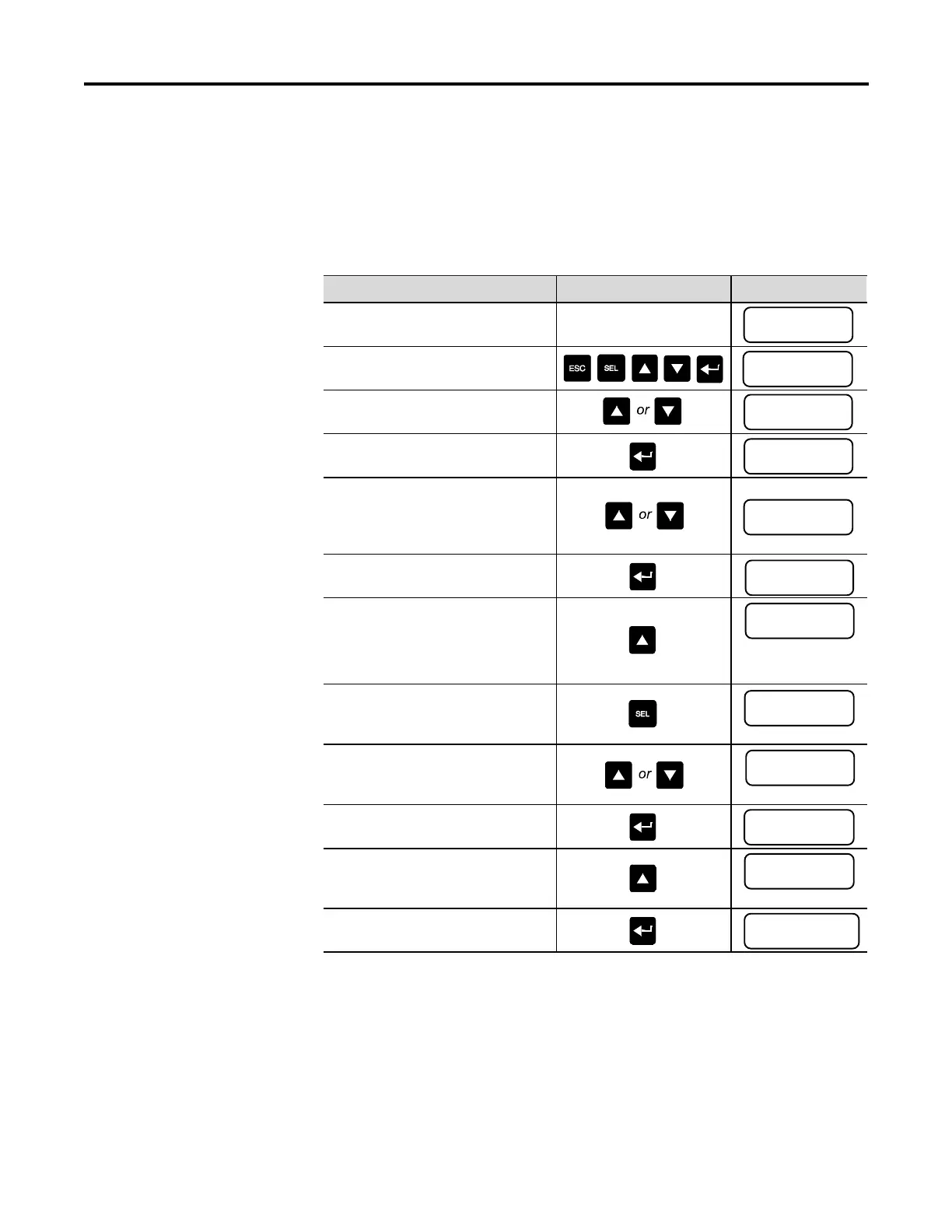

Parameter Modification All parameters are modified using the same method. The basic steps to
performing parameter modification are described below.
Note: Parameter values modified while the motor is operating are not
valid until the next start sequence begins.
Description Action Display
— — STOPPED
0.0 AMPS
1. Press any key to go from the status
display to the Choose Mode menu.
CHOOSE MODE
DISPLAY
2. Scroll with the Up/Down keys until the
Password option appears.
CHOOSE MODE
PROGRAM
3. Press the Enter key to access the
Program menu.
PROGRAM
METERING
4. Scroll with the Up/Down keys until the
option you want to use (Basic Setup,
Advanced Setup, etc.) appears. For
this example, Basic Setup will be used.
PROGRAM
BASIC SETUP
5. Press Enter to select the Basic Setup
group.
SMC OPTION
STANDARD
6. Scroll to the next parameter by using
the Up key.
STARTING MODE
SOFT START
Options: Soft Start,
Current Limit
7. To modify the parameter, press the
Select button to move the cursor to
the second line.
STARTING MODE
SOFT START
8. Scroll to the option of your choice by
using the Up/Down keys. For this
example, we will choose Current Limit.
STARTING MODE
CURRENT LIMIT
9. Press the Enter key to accept the new
setting.
STARTING MODE
CURRENT LIMIT
10. Scroll to the next parameter by using
the Up key. Continue the process
until all desired settings are entered.
RAMP TIME #1
10 SEC
11. Press the Enter key to save the new
settings to EEPROM.
PARAMETER MGMT
STORE IN EE
X If the Choose Mode menu does not provide the Program option, then you must enter your password.
Y The first parameter displayed advises the user if any control option (i.e. Pump Control) is resident. This
parameter is factory set and cannot be modified by the user.
Z The display will indicate that the second line is now active by flashing the first character. If the LCD display
does not provide a flashing cursor, then the controller is in the Display mode.
[ You will notice that the cursor has returned to flashing the first character of the first line.
