Human Interface Module (cont.) Control Enable
To enable motor control from a connected human interface module, follow
the procedure below with the connected human interface module's
programming keys.
Note: Series A and Series B human interface modules require different
procedures. Be sure to use the correct table.

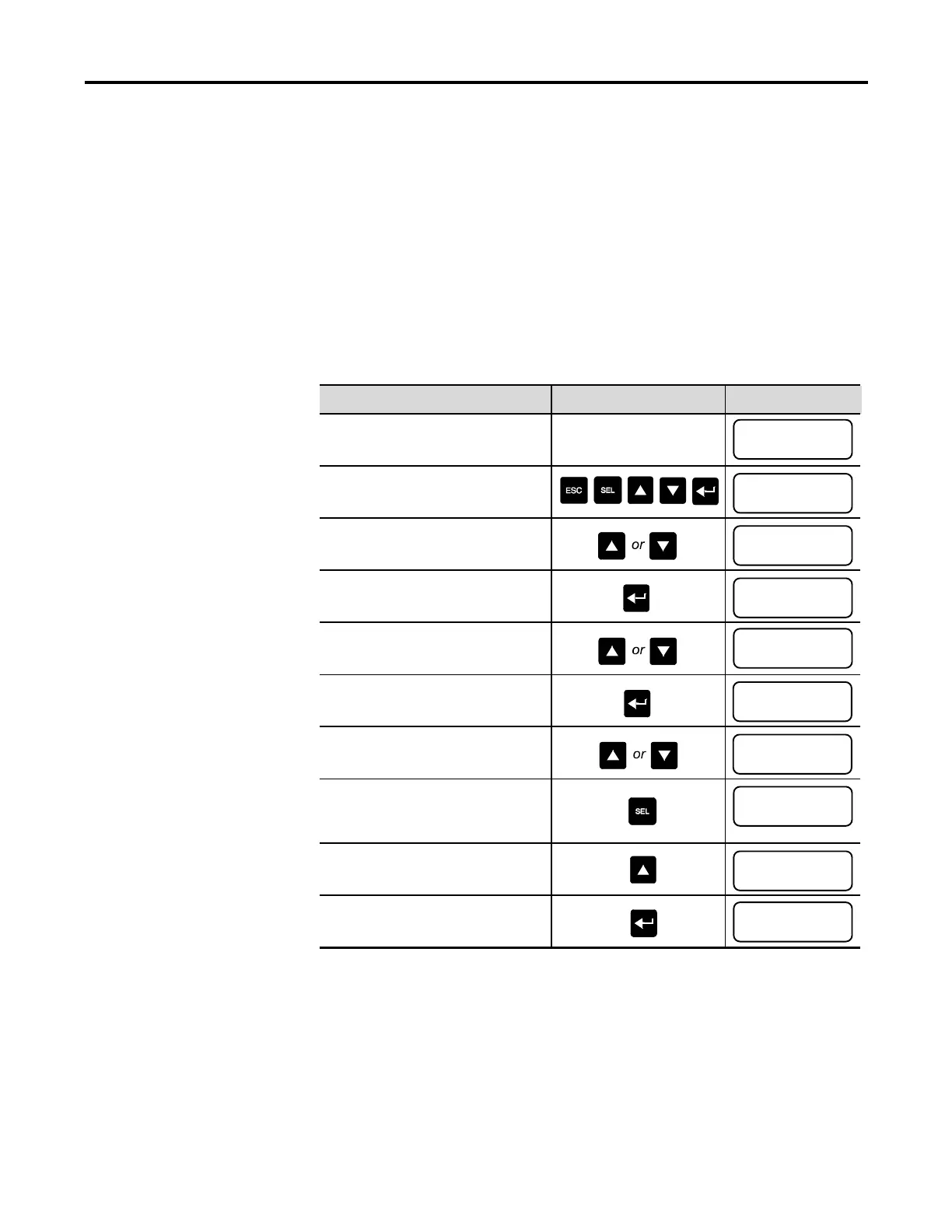

Series A Human Interface Modules
Description Action Display
——
STOPPED
0.0 AMPS
1. Press any key to access the Choose
Mode function.
CHOOSE MODE
_ _ _ _ _
2. Scroll with the Up/Down keys until the
Program option appears.
CHOOSE MODE
PROGRAM
3. Press the Enter key to access the
Program option.
PROGRAM
_ _ _ _ _
4. Scroll with the Up/Down keys to the
Linear List option.
PROGRAM
LINEAR LIST
5. Press the Enter key to access the
Linear List programming group.
VOLTS PHASE A-B
0 VOLTS 1
6. Scroll with the Up/Down keys to
parameter number 85 – Logic Mask.
LOGIC MASK
0 85
7. Press the Select key to move the
cursor to the second line to modify the
parameter. X
LOGIC MASK
0 85
8. Press the Up key until the value 4
appears.
LOGIC MASK
4 85
9. Press the Enter key to accept the new
setting.
LOGIC MASK
4 85
X
Zero and 4 are the only valid settings.
Note: If a human interface module is disconnected from the MV
Dialog Plus™ controller while the Logic Mask is set to 4,
a "Comm Fault" will occur.
