7-2 Options
1560D-UM051D-EN-P – February 2005

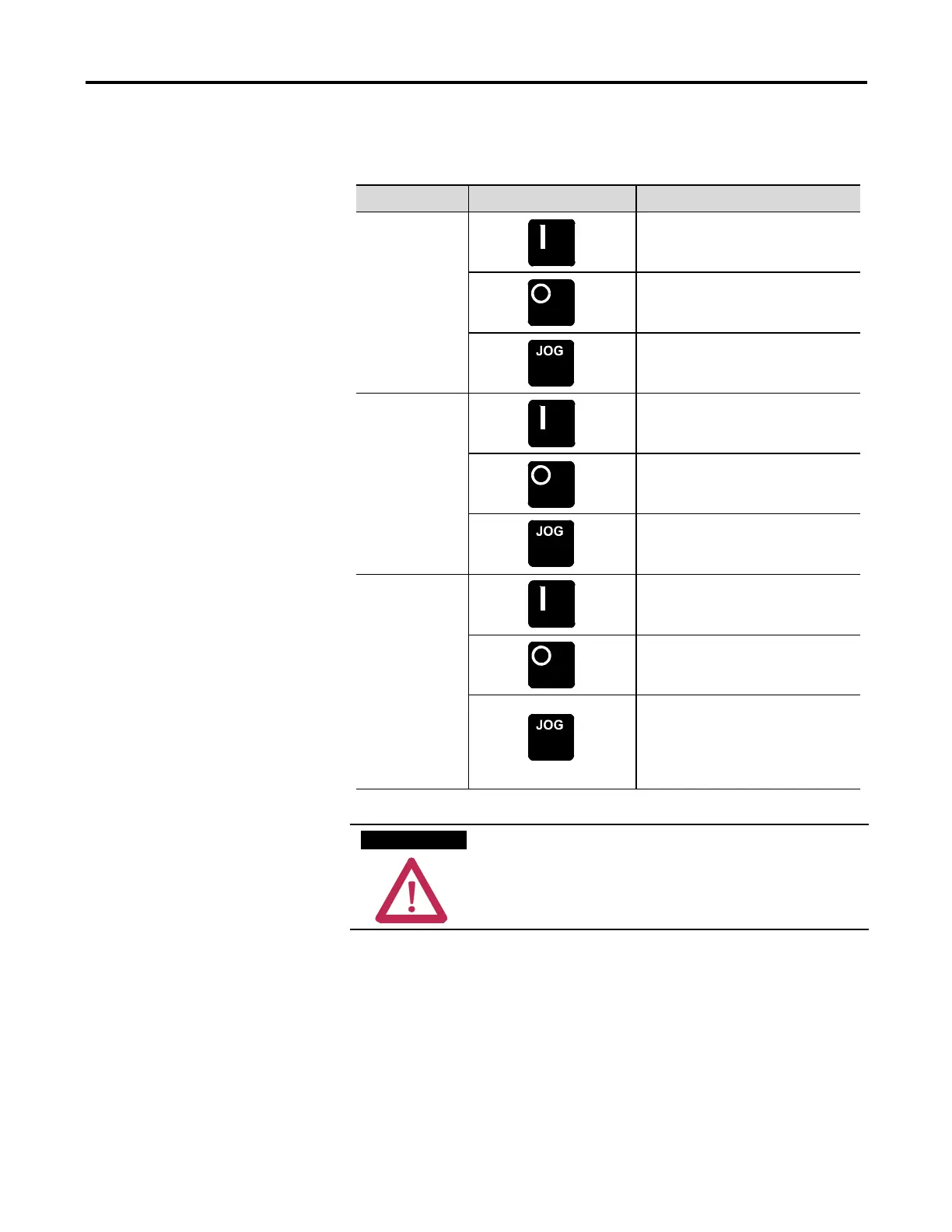

Human Interface Module
(cont.)
Option Action Operation
The green start button, when pressed,
will commence motor acceleration to full
speed.
Preset Slow
Speed
The red stop button, when pressed, will
provide a coast stop.
The jog button, when pressed, will
initiate slow speed motor operation from
a “stopped” status.
The green start button, when pressed,
will commence motor acceleration to full
speed.
Smart Motor
Braking
The red stop button, when pressed, will
provide a coast stop.
The jog button, when pressed, will
initiate a brake stop.
The green start button, when pressed,
will commence motor acceleration to full
speed.
Slow Speed with
Braking
The red stop button, when pressed, will
provide a coast stop.
With a “stopped” status, the jog button,
when pressed, will initiate slow speed
motor operation. From an “at speed”
condition, the jog button, when pressed,
will initiate a brake stop.
The Bulletin 1201 human interface module's stop push
button is not intended to be used as an emergency stop.
Such usage may result in personal injury or death. Refer
to applicable standards for emergency stop requirements.
A T T E N T I O NA T T E N T I O N
